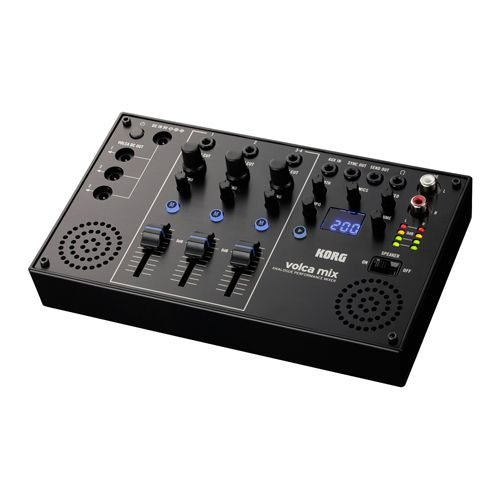

An analog performance mixer that completes your volca setup.

The volca mix is ​​a long-awaited mixer for the volca series. The volca mix is ​​a four-channel analog performance mixer that lets you create a setup for live playing by combining several volca units.

The sound control units are easy to control, plus there are LO/HI CUT filters that deliver clear sound, and a master chain that radically transforms the sound. In addition to the synchronization function found on all volcas, there are also DC output connectors that can power up to three volca units. Numerous functions to facilitate your volca performances on stage are housed in a high-quality aluminum paneled body reminiscent of a high-end DJ mixer.

Technical Specifications

Mixer
Mixer Type: Four-channel analog mixer

Number of Channels: Two mono * 1, one stereo * 2 * 1: Mono output volca: volca keys, volca bass, volca beats, volca kick * 2: Stereo output volca: volca sample, volca fm

Channel Controls: Lo/Hi Cut, Send Level, Mute, Volume (+6dB gain available for Boost)

Data bus: Four channel analog mixer bus, mono mix send bus, stereo aux send/return bus

Master: Volume

Master Effects
Analog Stereo Width Expander, Analog Dynamic Range Compressor (Dynamics, Speed)

Sync Controls

Play, Tempo

Login/Logout
Mixer Input: Mixer Input x 3 (1/8" [3.5 mm] stereo mini jack, 0dBu)

AUX

AUX Input (1/8" [3.5 mm] stereo mini jack, 0dBu)

Send: Send Output (1/8" [3.5 mm] stereo mini jack, 0dBu)

Sync: Sync Out (1/8" [3.5 mm] stereo mini jack, Output level: 5 V)Audio Out:

Audio Output: Line Out (L/R, RCA pin jack, Max 11.1 dBu) Headphone (1/8" [3.5 mm] stereo mini jack)

Speaker: Built-in stereo speakers, On/Off

Strength
Power: AC adapter (DC 9V)

Power Consumption: 300 mA

Output Power: VOLCA DC OUT x 3 (DC-DC cable for internal connection, up to 800 mA in total, 9 V)

Other
Dimensions (W x D x H): 193mm x 115mm x 45mm/7.60" x 4.53" x 1.77" (including buttons)

Weight: 350g / 12.35oz.

Included items: AC adapter, DC-DC cable x 3, Audio cable x 3

Accessories (sold separately): SEQUENZ CB-4VOLCA semi-hard case (can fit three volcas and volca mix), SQ-CABLE-6 sync cables.
