More features, more sounds, more possibilities. A cutting-edge platform that delivers more functionality than ever before. The mobile synthesizer workstation...
Devamını okuDevamını oku
A cutting-edge platform that delivers more functionality than ever before. The mobile synthesizer workstation that does it all.

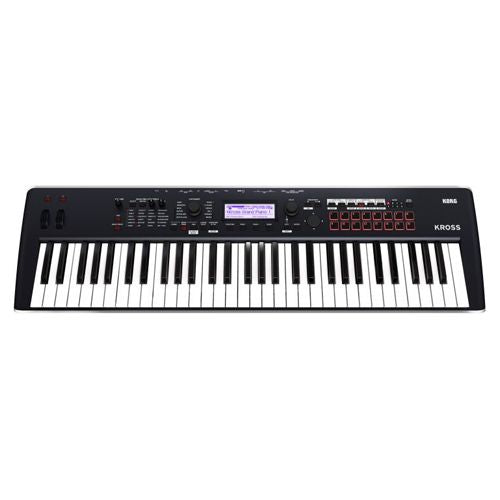

The long-awaited successor to the KROSS, the KROSS 2 is a compact, portable workstation with a wide range of sounds. This new model dramatically improves the sound and functionality of the KROSS while maintaining its lightweight, compact and battery-powered features. In addition to a total of over a thousand preset sounds, expandable PCM memory has also been added. A pad sampler has also been added, providing new, full-fledged sampling and USB audio/MIDI interface functionality. The color scheme is more stylish and the user interface is intuitive to use even by beginners. Simply select the sound you want to use, shape it to match your imagination, create a sound, create phrases and rhythms, record your vocals or guitar, bring KROSS 2 to your stage and realize your dream. Whatever the artistic vision, you can make it happen. KROSS 2 is a versatile synthesizer platform when it comes to creativity and freedom.
120 sounds (120 oscillators), single mode 60 sounds (60 oscillators), single mode
* Actual maximum polyphony varies depending on oscillator settings such as stereo multisample and velocity crossover.
Preset PCM Memory
Average 128 MB (calculated corresponding to 48 kHz / 16-bit linear PCM data) 496 multisamples (including 7 stereo), 1014 percussion samples (including 49 stereo)
Add-on PCM Memory
Approx. 128MB (*when converted to 48kHz 16-bit linear PCM)
* Loading option is used in PCM
Oscillator
OSC1 (Single), OSC1+2 (Dual): Stereo multisamples are supported with transitions, crossfades and layers, with 4 velocity steps per oscillator
Filters
Four types of filter routing (single, series, parallel, 24dB) Two multi-mode filters per voice (low pass, high pass, band pass, band reject)
Modulation
Two envelope generators (Filter and Amp), two LFOs, two key tracking generators (Filter and Amp), and two AMS mixers for each voice. Plus pitch EG, common LFO, and two common key tracking generators
Program
Tones
Up to 16 tones, switchable via key zone or velocity zone, supports layer and crossfade, Tone Adjust function allows offset of program settings
Master Keyboard feature
These allow you to control external MIDI devices
Combinations
Drum Kits
Stereo and mono drum samples. 4-way velocity (Linear, Power, Layer) with crossfade and adjustable crossfade shapes.
Pads 1–16 STEP SEQ ACTIVE button, Run button FAVORITES ACTIVE button SAMPLER ACTIVE button, HOLD button AUDIO PLAY ACTIVE button BANK LEDA/B/C/D/E/F/G/H (Also used by Step sequencer, Favorite, Pad Sampler and Pad Audio Play)
Drum Track
DRUM TRACK button
Arpeggiator
ARP key
Voice Recorder
AUDIO REC button
User Interface
Screen
240×64 pixel LCD backlight Adjustable contrast (hold EXIT button and turn VALUE wheel)
Category
CATEGORY wheel, VALUE wheel
MODE
COMBI key, PROG key, SEQ (GLOBAL/MEDIA) key
Value Controls
Cursor key, EXIT,ENTER, FUNCTION, PAGE-, PAGE+, MENU key
Sequencer
REC button, START/STOP button
Fast Layer Split
LAYER/SPLIT key
Other
VOLUME knob
Control Entry
DAMPER (Supports piano-style half-damper pedals as well as standard foot switches) Assignable SWITCH Assignable PEDAL
Audio Outputs (Analog)
AUDIO OUTPUT L/MONO, R
Connections: 6.3 mm (1/4") phone jack(TS unbalanced) Output Impedance: 1.1k ohm stereo, 550 ohm mono (L/Mono Only) Maximum Level: +10.0dBu Load Impedance: 10k ohm or more Can be controlled with VOLUME knob
HEADPHONE OUTPUT
Connections: 3.5mm (1/8") stereo mini phone jack Output Impedance: 33 ohm Maximum Level: 40 + 40 mW Can be controlled with VOLUME knob
Audio Inputs (Analog)
LINE INPUT
Connections: 3.5 mm (1/8") stereo mini phone jack Input Impedance: 1.1k ohm Maximum Input level: -42 to 0 dBu
MICROPHONE INPUT
Connections: 6.3 mm (1/4") phone jack(TS unbalanced) Input Impedance: 33 ohms Maximum Input level: -48 to -6dBu No phantom power or plug-in power support
Others
MIDI
IN, OUT
USB
USB type B connector x 1, USB-MIDI interface, USB audio interface
SD Card slot
A card slot
* Accepted capacity: SD memory cards up to 2 GB. SDHC memory cards up to 32 Gigabytes (GB). SDXC memory cards are not supported.
Main Specifications
Strength
AC adapter power supply DC 9V AA alkaline battery x 6, or nickel-metal hydride battery x 6
Battery Life
AA alkaline batteries x 6: Approx. 6 hours AA nickel-metal hydrate battery (1900mAh) x 6: Approximately 7 hours
* Varies depending on batteries used and usage conditions.
