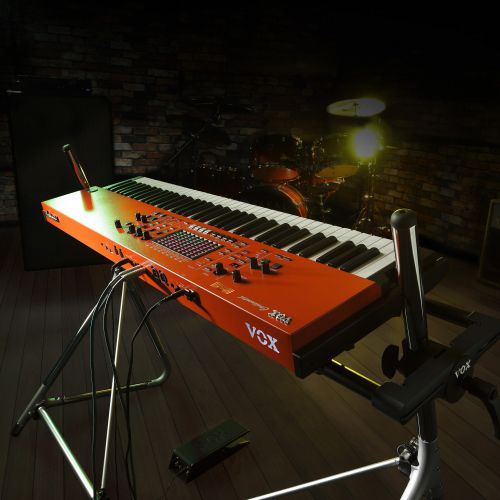

Originally a transistor organ that debuted in the 1960s, the VOX Continental is a classic that is loved by top musicians and is a practical keyboard for live performance or home use. Now, an all-new keyboard that brings this concept to the forefront has been released by the VOX brand.

The VOX Continental uses a simple and intuitive interface that makes every function quickly accessible. The high-quality sound engine section focuses on organ, electric piano and acoustic piano, and there is a rich range of sounds ready for the stage. In addition, the Continental features a powerful effects section to enhance these sounds, and even analog valve drive provided by the state-of-the-art vacuum tube Nutube. It is an instrument perfectly suited to your live performance needs for rock, pop, jazz and many more.

The traditional feel of VOX organs combined with the innovation of years of research, right down to the illuminated VOX logo, means the new VOX Continental is a fusion of both, redefining the look of the modern stage keyboard.

•Intuitive user interface that emphasizes on-stage playability
•ORGAN section meticulously models three vintage organs
•High-quality E.PIANO section with attention to every detail
•A rich PIANO section powered by high capacity samples
•KEY/LAYER section has a wide variety of variations
•Intuitive and powerful effects optimized for live playing
•Touch sensor that can control various parameters
•Nine-band EQ for detailed control of your sound
•Real valve drive sound powered by new vacuum tube Nutube
•Newly developed waterfall keyboard provides excellent playability
•Dynamic knob lets you freely customize the playing feel of the keyboard
•Scene memory lets you instantly switch between settings
•Light and compact body made of solid sheet metal and aluminum
•Carries the traditional red color for VOX organs
•V861 Volume/Expression pedal included

Technical Specifications

Keyboard

Semi-weighted waterfall keyboard (Velocity sensitivity supported, After touch not supported)

•61 keys: C2 - C7 (transposable in the range of [C0...C5] - [C4...C9], velocity sensitivity is from C2 to C7.
•73 keys: E1 - E7 (transposable in the range of [E1...C5] - [E3...E9], velocity sensitivity is from E1 to E7.

Sound Generator

Maximum polyphony

•Tonewheel organ sound generator modeling: 128 voices
•Transistor organ sound generator modeling: 100 sounds
•Electronic piano sound generator modeling: 80 sounds
•High-quality Piano sound generator: 60 dual stereo voices (equivalent to 240 voices maximum)
•Analog synthesizer sound generator modeling: 36 voices
PCM sound generator: 64 stereo sounds (equivalent to 128 sounds maximum)

*Actual maximum polyphony may vary depending on oscillator settings such as stereo multi-samples and velocity crossfade.

PCM Memory
•Average 10.5 GB (in case of 48 kHz, converted to 16-bit linear PCM)

ORGAN Department

•3 types (CX-3, VOX, COMPACT)
•Draw bar, Percussion ON/OFF, Split feature, Vibrato/Chorus ON/OFF, Rotary Speaker ON/OFF)

E. PIANO Department

•3 types (TINE, REED, FM)

PIANO Department

•3 types (GRAND, UPRIGHT, E.GRAND)

KEY/LAYER Section

•6 types (KEY, BRASS, STRINGS, LEAD, SYNTH, OTHER)

Preset variations

•150

Scene

•16 (4x4)
•100 sets can be saved with external USB

Effects

Insert Effects

•EFFECT: CHORUS, PHASER, FLANGER, COMP, DRIVE, WAH (controlled by pedal)

Master Effects

•DELAY: 1.DELAY, 2.CROSS, 3.TAPE, 4.MOD DLY
•REVERB: 1.HALL1, 2.HALL2, 3.ROOM1, 4.ROOM2, 5.SPRING

EQ

•9-band stereo input/output

VALVE DRIVE

•Vacuum lamp Nutube 6P1

DYNAMICS

•Ability to control the tone of the dynamics in the volume level and your keyboard playing

Controls

Tilt Arm

•ORGAN: Rotary Slow/Fast
•E.PIANO: Tremolo ON/OFF
•KEY/LAYER: Pitch bend

Touch Sensors (electrostatic capacitance type)

•ORGAN: Drawbars
•KEY/LAYER: Volume controls
•EQ: 9 band equalizer

Sound Characteristics

•20Hz-22kHz ±1.0dB 10k Ω load

THD+N

•20Hz-22kHz 0.005% (standard) 10k Ω load

S/N Ratio

•105dB (standard)

Audio Output

OUTPUT L/MONO,R

•Connection: 6.3 mm (1/4") monaural phone jack, unbalanced
Output impedance: 1.1 Ω (when outputting stereo), 600 Ω (L/Mono jack, when outputting mono)
•Maximum level: +16.0 dBu
•Load impedance: 10kΩ or more

OUTPUT L, R

•Connection: XLR-3-32 type (balanced) + LIFT - GND switch
Output impedance: 350 [Ω] (when stereo output)
•Maximum level: +16.0 [dBu]
•Load impedance: 10kΩ or more

EARPHONES

•Connection: 6.3 mm (1/4") stereo phone jack
•Output impedance: 50 Ω
•Maximum level: 150 + 150 mW @32 Ω

Control Inputs

TIPPER

KORG DS-1H damper pedal (supports half-pedal), PS-1 and PS-3 switch pedals

ROTOR SPEED

•KORG PS-1 and PS-3 switch pedals

CONTROL

•V861 VOL/EXP pedal volume/expression pedal V861

Other Voices

MIDI

•INPUT, EXIT

USB

•USB A (A type): Save/load scene data
USB B (B type): MIDI interface: 1 (16 ch) in/1 (16 ch) out
•Compatible with Ver. 2.0 USB specification. High speed(up to 480 Mbps)

Key Features

Strength

•AC adapter connection (DC 15 V), power button

Dimensions (W x D x H)

•61-key model: 939 mm x 350 mm x 86 mm/ 36.97" × 13.78" × 3.39"
•73-key model: 1,103 mm x 350 mm × 86 mm/ 43.43" × 13.78" × 3.39"

Weight

•61-key model: 7.2 kg / 15.87 lbs
•73-key model: 8.4 kg / 18.52 lbs

Power consumption

•16W

Interior items

AC adapter, Power cord, V861 Volume/Expression pedal, ST-Continental keyboard stand (for 61-key model and 73-key model)

Accessories (sold separately)

Soft case

•SC-Continental 61 (for 61-key model)
•SC-Continental 73 (for 73-key model)

Damper Pedal

•KORG DS-1H

Switch Pedal

•KORG PS-1
•KORG PS-3

* All product names and feature names are trademarks or registered trademarks of their respective owners.
* The appearance and specifications of the products are subject to change without prior notice.
