The LTD (Limited Edition) Model's bag is gray and includes a microKEY2-37.
The most iconic synth for modern musicians

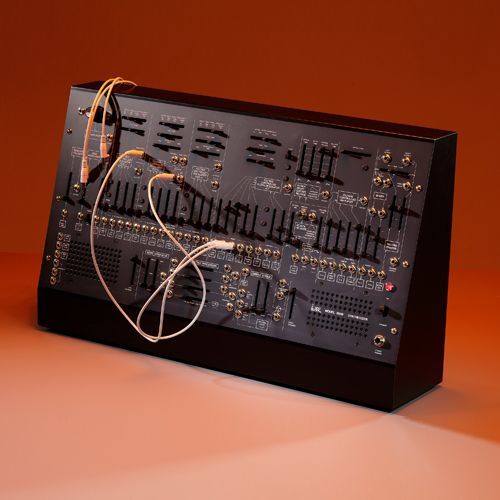

The original ARP 2600 is in a more ergonomic size.
The ARP 2600 is arguably the most iconic and recognisable synthesizer of all time. Having been used on countless records, film soundtracks, TV shows and game soundtracks from the 70s to the present day, the ARP 2600's sound continues to be an important part of the music world.
The new ARP 2600 M delivers the world-renowned sound in a more compact and portable format, and includes additional features that make this historic synth ideal for today's use.
-A legend, reborn -Proudly Designed and Made in Japan -A must for the studio -Additional features and functions -Free Music software Package
TECHNICAL SPECIFICATIONS
Operating temperature range
0 – +40 °C (non-condensing)
Maximum Polyphony
2 voices are duophonic, normally monophonic
VCO-1 (Voltage Controlled Oscillator 1)
Waveforms
Sawtooth, square
Frequency range
Average 0.03 Hz – 30 Hz (low freq. mode) Average 10 Hz - 10 kHz (audio mode)
Voltage controlled response
1V/oct.
VCO-2 (Voltage Controlled Oscillator 2)
Waveforms
Sawtooth, pulse (dynamic pulse), triangle, sine
Frequency range
Average 0.03 Hz – 30 Hz (low freq. mode) Average 10 Hz - 10 kHz (audio mode)
Pulse width
10% – 90%
Voltage controlled response1
V/oct.
VCO-3 (Voltage Controlled Oscillator 3)
Waveforms
Sawtooth, pulse (dynamic pulse)
Frequency range
Average 0.03 Hz - 30 Hz (low freq. mode) Average 10 Hz - 10 kHz (audio mode)
Pulse width
10% – 90%
Voltage controlled response
1V/oct.
VCF (Voltage Controlled Filter)
Type
Low-pass (TYPE I: early 24 dB/oct., TYPE II: late 24 dB/oct.)
Frequency range
Average 10 Hz - 10 kHz
Resonance
1/2 - self oscillate
VCA (Voltage Controlled Amplifier)
Control voltage
AR type (internally connected) ADSR type (internally connected)
Noise generator
Noise spectrum types (white and pink)
RING MODULATOR
Type
Analog multiplier
Input signal (internally connected)
VCO-1 sawtooth wave, VCO-2 sine wave
SAMPLE & HOLD
Sampled signal
Noise (internally connected)
AUDIO OUTPUT JACKS Front Panel (LEFT, RIGHT OUT jacks)
Connection
φ3.5 mm mono phone jack
Maximum output level
+9 dBu @ 10 kΩ load
Output impedance
1.2 kΩ
Side Panel
Connection
φ6.3 mm mono phone jack
Maximum output level
+4 dBu @ 600 kΩ load
Output impedance
1.2 kΩ
HEADPHONE OUTPUT
Connection
φ6.3 mm stereo phone jack
Maximum output level
50mW + 50mW @ 33Ω load
Output impedance
20Ω
EXTERNAL AUDIO INPUT (PREAMPIE INPUT) JACK
Connection
φ3.5 mm mono phone jack
Maximum entry level
+2dBu *RANGE x10, GAIN knob Max(
Input impedance
100kΩ
MIDI connection
OF
USB port
Type A, Type B
GENERAL
Power supply
AC power supply terminal (KA320)
Power consumption
13W
Dimensions (W × D × H)
520 × 129 × 311 mm / 20.5 × 5 × 12.2 inches,
Weight
5.9 kg / 13 lbs
Interior items
Travel bag, AC power cord (KA320), patch cables, user manual, ARP sticker
