The ultimate compact FM synth is finally here.

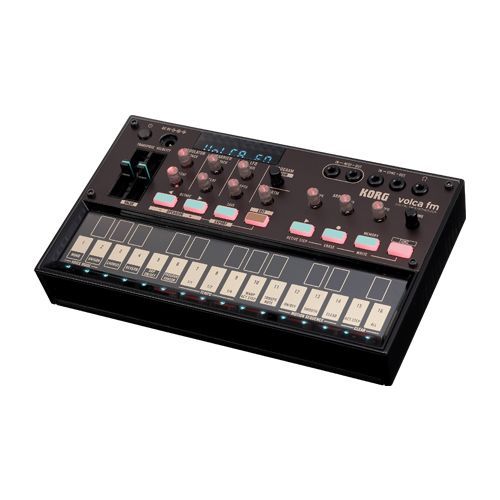

The new generation volca fm is a powerful 6-voice, 6-Operator FM synthesizer featuring all 32 classic algorithms, a 16-step loop sequencer, effects and a powerful arpeggiator, perfectly reproducing the sound of the classic Yamaha DX7 and fully compatible with SYS-EX patches for DX7.

Powered by batteries (included) or adapter (optional) in a compact and lightweight chassis with built-in speakers, the volca fm is the ultimate portable FM synth solution for all musicians.

With twice the volume of its predecessor, extra effects, expanded MIDI connectivity and an intuitive interface, this new generation volca FM is ready to bring unprecedented possibilities to your setup and revolutionize your studio with new musical ideas.

Technical Specifications

Keyboard
Multi-touch 27 key keypad

Synthesizer
Type
FM synthesis

Maximum Polyphony
6 voices

Its structure
6 operators, 32 algorithms

Number of Programs
64

Editing Parameters
Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm, Randomize
In Edit Mode all parameters for each operator can be edited

Controls
Transpose, Velocity, Octave, Arp (Type, Div), Chorus Level, Reverb Level

Types of Arpeggiators
9 ("Rise", "Fall", and "Random" 3 patterns each)

Sound Modes
Poly, Mono, Unison

Effect
Chorus, Reverb

Sequencer

Number of parts
1
Number of Steps
16
Number of Recordable Patterns
16
Controls
Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome

Links

Audio output
Headphone (3.5mm stereo mini jack)
Synchronize
Sync In (3.5mm mono mini jack, Maximum input level: 20V)
Sync Out (3.5mm mono mini jack, Output level: 5V)
When two units of volca fm are available to transfer audio programs and sequence data from one volca fm to another
MIDI
IN、OUT
Note: 3.5mm stereo mini jack connector (Type-A MIDI adapter required)
Can be used to convert and load SYS-EX/SYX files from Yamaha DX7

Strength
Power supply
AA alkaline battery x 6 or AA nickel-metal hydride battery x 6
Or AC adapter (DC 9V) (optional)
Battery Life
Approximately 10 hours (when used with alkaline batteries)

Dimensions (W x D x H)

193 x 115 x 40 mm / 7.60” x 4.53” x 1.57”

Weight
360g / 12.70oz. (excluding batteries)

Other
Included Items
AA alkaline battery x 6 (for control), Sync Cable, Edit Parameter List
Accessories
AC adapter (DC 9V) KA-350
