Connect any device and control it freely. 2 x 8 step sequencer.

When the classic MS-20 analog synthesizer was introduced in 1978, it was accompanied by its trusty partner, the SQ-10 step sequencer. Now, thirty years later, the MS-20 has been reborn as the MS-20 mini, and the SQ-10 has been modernized into the SQ-1.

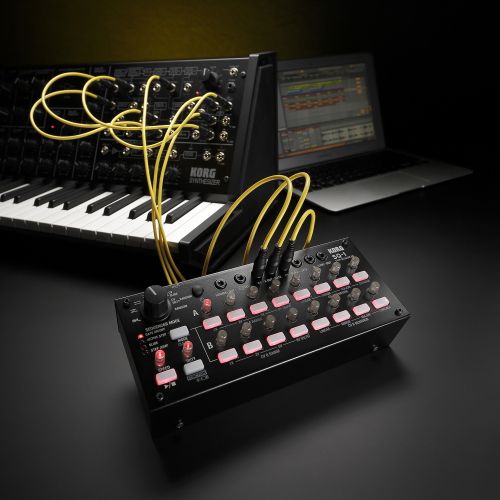

The SQ-1 is a compact step sequencer with a 2x8 step count. Its rich connectivity allows it to be connected to the MS-20 and various other synthesizers. Vintage analog synths or the latest compact synths can be controlled with this unit. Just like the volca, you can switch between various synthesizer modes and create spontaneous performances using the step buttons.

-Connect and control MS-20 and many types of other equipment
-Various sequencer modes
- Step editing buttons inherited from the Volca series, allowing for perfect improvisation
- Robust and compact body that can be operated with batteries

Technical Specifications

Sequencer Mode: ALTERNATE, ORDER, PARALLEL TURN, PARALLEL ORDER, CV/DUTY, CV/SLIDE, CV/DUTY RADOM, RANDOM
Step Mode: GATE ON/OFF, ACTIVE STEP, SLIDE, STEP JUMP
Sequence Step Resolution: 4th notes, 8th notes, 16th notes

CV OUT Pitch: Linear, Minor, Major, Chromatic
CV OUT Voltage: 1V, 2V, 5V (Oct) 8V (Hz/V)
GATE OUT Polarity: + (positive polarity), - (negative polarity)

SYNC IN/OUT Polarity: + (rise), - (fall)
Links:
- littleBits OUT jack (mini monaural phone jack)
- OUT (MIDI OUT) jack (mini stereo phone jack)
- CV - A OUT - GATE jack (mini monaural phone jack, CV OUT : Output Level 1V, 2V, 5V, 8[Hz/V], GATE OUT: output level 10V)
- CV - BOUT - GATE jack (mini monaural phone jack, CV OUT : Output Level 1V, 2V, 5V, 8[Hz/V], GATE OUT: Output Level 10V)
- IN – SYNC – OUT jack (mini monaural phone jack, SYNC IN: Max Input Level 20V, SYNC OUT: Output Level 5V)
- USB jack (type B, USB MIDI)
Power Source: two AA batteries (alkaline batteries recommended), or USB power
Battery life: Approximately 5 hours (when using alkaline batteries)
Dimensions (WxDxH): 193 x 84 x 63mm/7.60" x 3.31" × 2.48"
Weight: 641g/1.41lbs.
Included items: 2 AA batteries (for control), mini plug - DIN cable
Accessories: Patch cord MS-CABLE-18
