SC305 (Single)
51,335.81TLKDV dahil
4 ürünler Stokta Show extra info for delivery time
Açıklama
Eve Audio SC305 (Single)
150W 5" 3-Way Near & Mid Field Active Studio Monitor (Single)
All the benefits of a professional 3-way listening solution and excellent frequency balance in a compact cabinet.
The SC305 is the first model of EVE Audio 3-way monitor products and has been carefully designed to provide equal comfort and sharp accuracy in stereo or surround setups. If we are talking about a relatively small setup, the SC305 would be the perfect choice for voicing the center channel.
The SC305 combines the power of three independent amplifiers to deliver efficient, dynamic and low-noise sound reproduction. The company's three-way systems are designed not just for delivering powerful, deep bass (which they can do with ease), but for sessions where critical, detailed listening is essential.
With its suitable dimensions and superior technical characteristics, SC305 is a product that has no rival among monitors today. Don't miss this chance and come hear it for yourself!
At the heart of EVE Audio 3-way monitors is the concept of effectively increasing the efficiency of your speakers by distributing frequencies equally across all drivers.
In the SC305 model, one driver only reproduces frequencies up to 350Hz and exhibits a "bass" character, while the other driver reproduces a wider range up to the cut-off frequency of 3000Hz and exhibits a more "bass-mid" character.
This design provides a more efficient sound transmission by making each driver perform a more effective physical work and creating less mechanical movement. Both bass drivers use the 5" SilverCone driver used in the company's exclusive SC205 model, and since both drivers work simultaneously, they provide a wider frequency response down to 50Hz.
Using AMT RS2 as a treble driver, the SC305 provides more power and efficiency than the AMT treble driver thanks to its larger front plate and internal magnet.
While the 3 50W PWM amplifiers in its cabinet will easily provide you with the power you want, the details in its technical features and the meticulousness in its design will make the SC305 a product frequently mentioned in the monitor world.
Bass Port Design
It’s all in the geometry. One of the negative effects of port compression is bass distortion. As you turn up the volume, the efficiency of the port decreases and distortion increases. For our bass port designs, we chose a large rear rectangular port with no hard edges. This is one of the reasons why EVE monitors have high efficiency at low frequencies. The results? High sound pressures with tight, punchy bass frequencies without port distortion. Turn up the volume and EVE will give you the best bass.
Measurements
Free field frequency response (1/6 oct.)
Top = Horizontal configuration / Bottom = Vertical configuration
Red = 0° / Green = 30° off-axis
Corruption
Orange = 2nd / Green = 3rd and frequency response (red)
Polar pattern (1m)
Top = Horizontal configuration / Bottom = Vertical configuration
Red = 200Hz / Green = 1kHz / Blue = 5kHz
Explanation
• Free field frequency range (-3dB): 50Hz - 21kHz
• Tweeter: AMT RS3
• Mid Woofer: 30mm / 5"
• Woofer: 130mm / 5"
• Crossover frequency: 350Hz / 3000Hz
• Maximum SPL at 1m: 118dB
• Number of amplifiers: 3
• Output power (woofer): 2 x 50W
• Output power (tweeter): 50W
• Protection limiter: Yes
Settings
• Sound : -inf. - + 6dB
• High-shelf filter (-5dB - + 3dB): >3kHz
• Desktop filter boost (0dB - + 3dB): 80Hz
• Desktop filter cut-off (-5dB - 0dB): 180Hz
• Low-shelf filter (-5dB - + 3dB): <300Hz
• LED brightness adjustment: Yes
• Level lock dip switch: Yes
• Filter lock dip switch: Yes
• Woofer switch dip switch (L / R): Yes

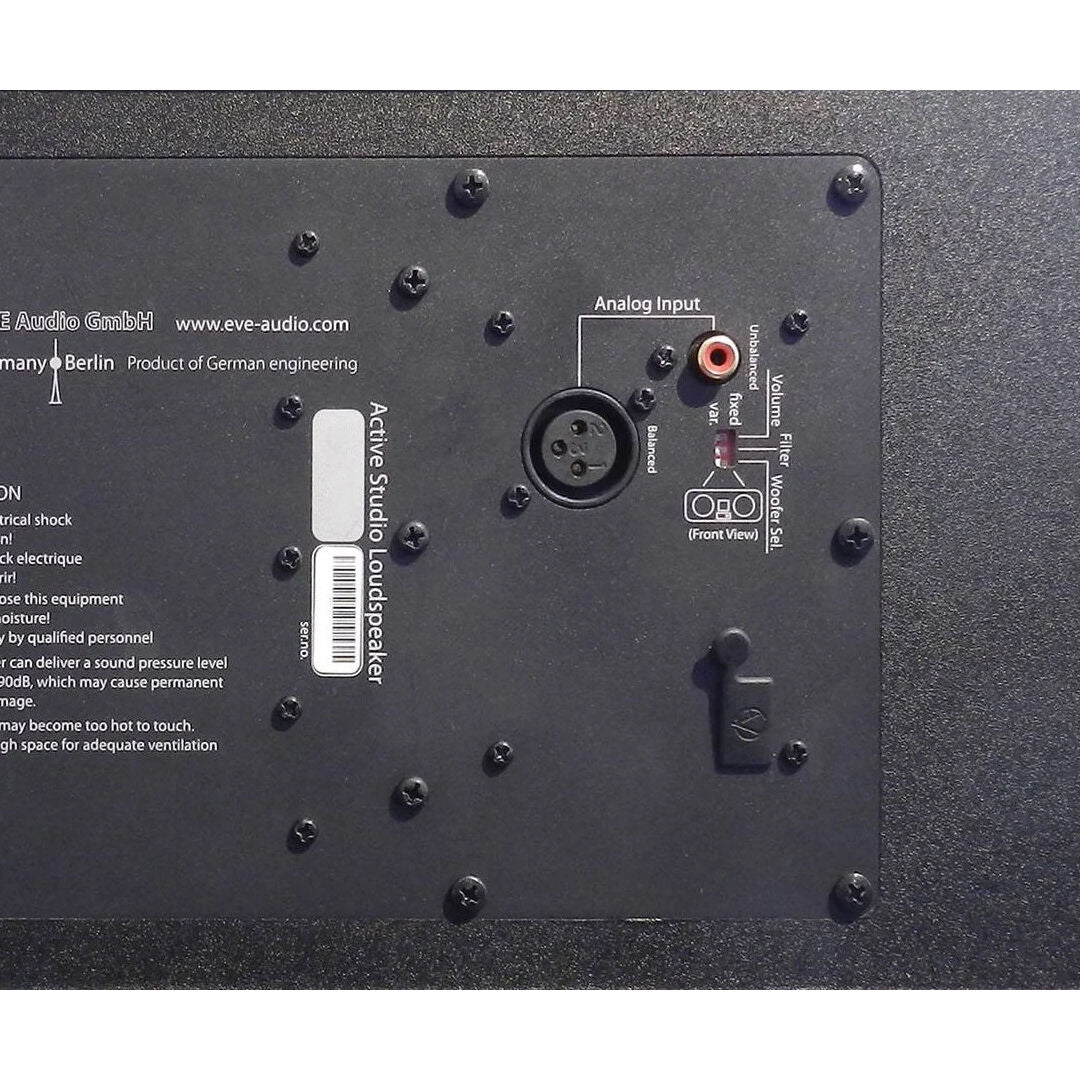

Connectors
• XLR input (impedance): (10k)
• RCA input (impedance): (10k)
Power consumption
• Standby: <1W
• Full output: 110VA
Dimensions and weight
• Dimensions (WxHxD) [mm]: 425 x 180 x 250
• Dimensions (WxHxD) ["]: 16.73 x 7.09 x 9.84
• Weight [kg / lb.]: 8.5 / 18.7
