(iOS / Android / macOS / Windows Compatible)

• Podcast Mixer with microSD Recorder
• 2 Microphone Inputs
• +48V Phantom Power and Optical Limiters
• Rechargeable battery
• Easy to Use Controls
• Low Cut Switch (HPF)
• Mix-Minus for remote participants
• Stereo Auxiliary Input
• Includes Velvet Carrying Bag
• Includes USB-C Cable

Whether you’re a podcaster or someone who needs high-quality audio on the go, you’ll find everything you need with a mobile mixer, USB audio interface, warm, analog sound, and an 8-hour rechargeable battery. Now you can connect your microphones, connect to remote guests over the phone, layer music behind your recording, and record high-quality audio from anywhere in the room.

Easy registration

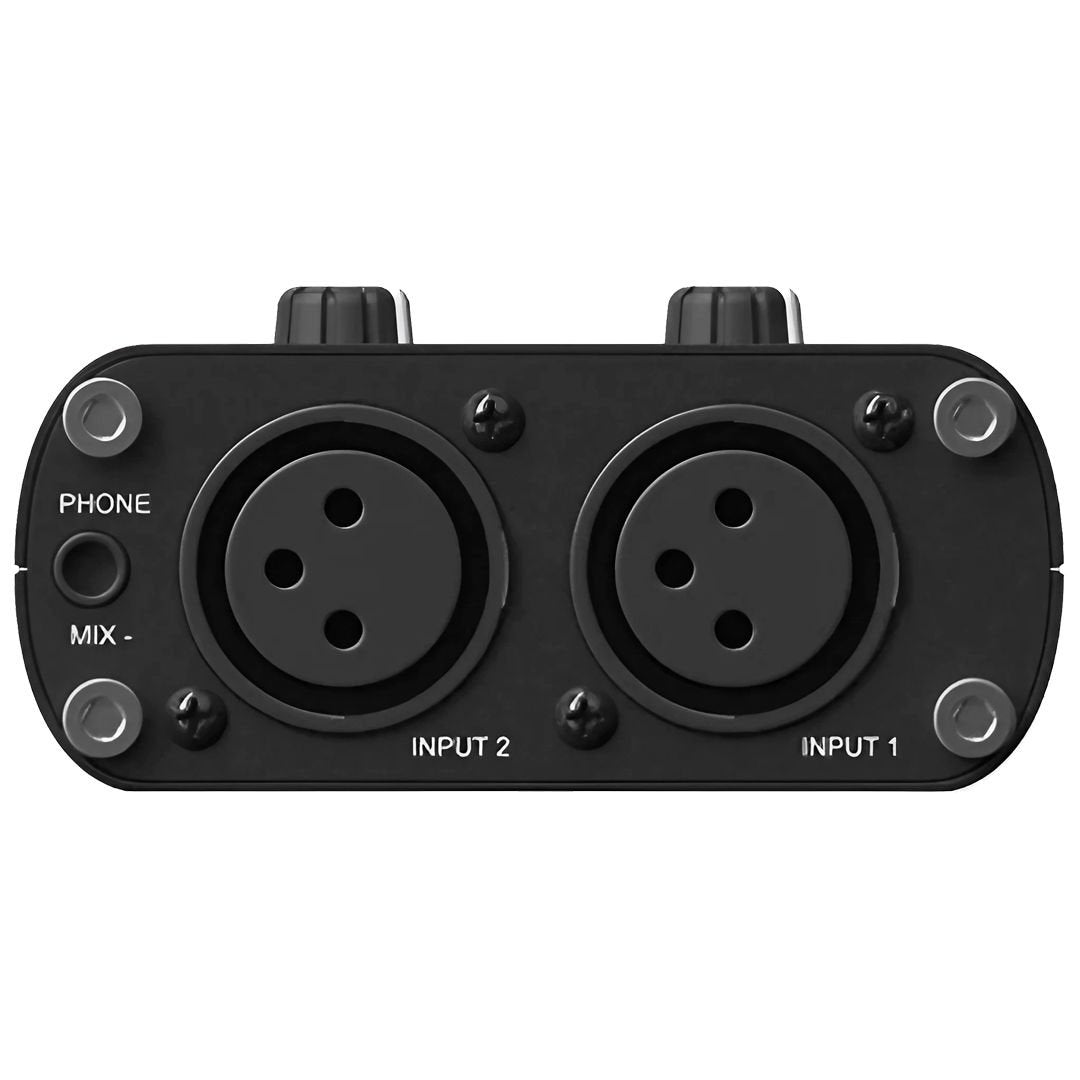

PortCaster features two Neutrik input jacks that accommodate professional microphones, and a TRRS input jack for connecting a phone. Now you can easily add remote guests to your podcast. Just call them and PortCaster does the rest. PortCaster is also a versatile mixer. It has an Auxiliary stereo input that lets you effortlessly add background music or sound effects to your podcast. PortCaster can be connected to a camera via the stereo line out and 46dB pad.

Easy control

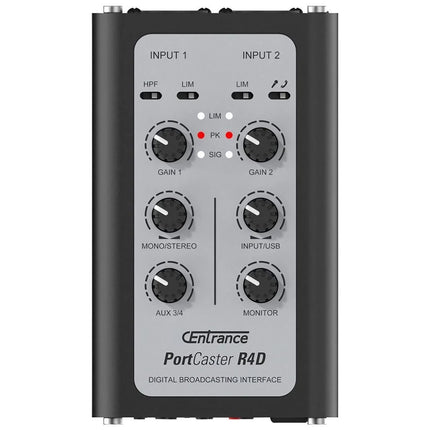

The top panel provides easy access to all settings using familiar analog knobs. No more searching through menu pages to find the right setting: quick and easy controls are always at your fingertips.

Discrete Microphone Preamps
Sound quality starts with the microphone preamps. The onboard Jasmine microphone preamps feature a dedicated, discrete transistor design with 65dB of clean, low-noise gain. This makes it easy to connect any condenser or dynamic microphone, including the notoriously gain-hungry SM7B and RE20.

Mix-minus for remote guests!
Mix-minus is a feature used by radio stations to add guests to their program. Mix-minus prevents annoying voice feedback from going back to the caller over the phone line. You can also have guests call in from your phone with PortCaster, Mix-minus works that way too. Just connect your phone and call your guest.

Mono blend releases!

Some streaming services don't offer stereo sound. PortCaster's handy mono blend button can combine input channels so Instagram, Facebook Live, Webex, Zoom, and other services can hear both participants at the same time. Even stereo music or sound effects on the Aux 3/4 can be mixed down to mono if needed.

Dual Optical Limiter
To help better control recording levels, PortCaster features independent, soft-knee optical limiters for both Host and Guest, providing truly professional sound. Opto analog limiters can catch audio peaks early, preventing nasty digital clipping.

Ultimate Mobile Recorder
The PortCaster loves the outdoors. The battery system provides reliable service in the field. The chassis is made of lightweight aluminum and touch controls make adjustments quick and easy. The built-in SD recorder, along with optional, separately available XY stereo microphones, turns the PortCaster into a professional, high-quality mobile recorder.

Technical Specifications
• Resolution: 16bit , 24bit
• Sample Rate: 44.1kHz – 192kHz
• Phantom Power: 48 V, maximum 10 mA per channel
• Microphone Preamplifier Gain Value: +0 dB…+65 dB
• Microphone input impedance: 1 kOhm
• High Pass Filter: 130 Hz, 6 dB/octave roll of
• Frequency Response: 20 Hz - 20 kHz ±0.5 dB
• EIN: -127dB
• THD+N: 0.004%
• Crosstalk, 1kHz: -95dB
• Aux 3/4 maximum input level: 2.2 V rms / +9.2 dBu, relative 0 dB FS
• Line output level: 1.8 V rms / +7.1 dBu, relative 0 dB FS
• Output impedance: 1 Ohm (headphone output)
• Headphone output power: 400 mW (total) at 32 Ohms
• Supported Headphones: 16…600 Ohm
• Gain Switch: 46dB pad (set low to power DSLR)
