Nux Ace Of Tone Dual Overdrive Pedal
5,289.48TLKDV dahil
12 ürünler Stokta Show extra info for delivery time
Açıklama

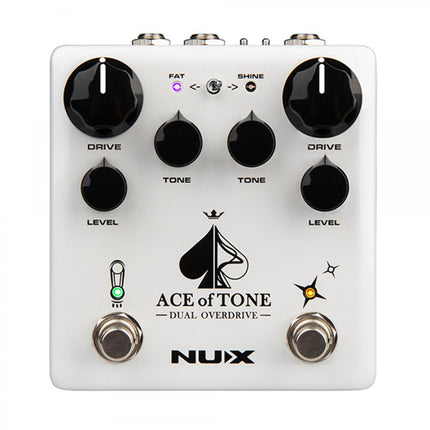

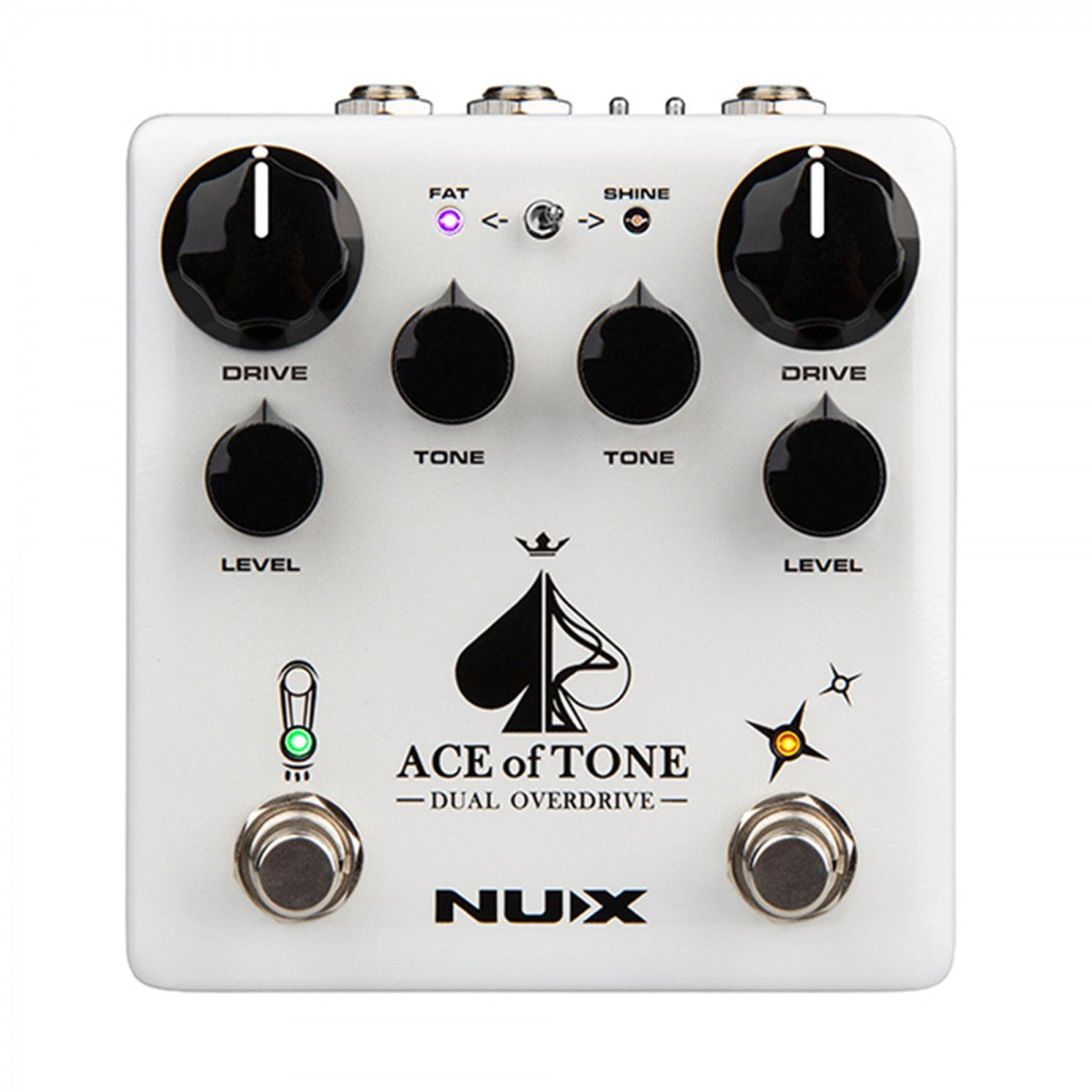

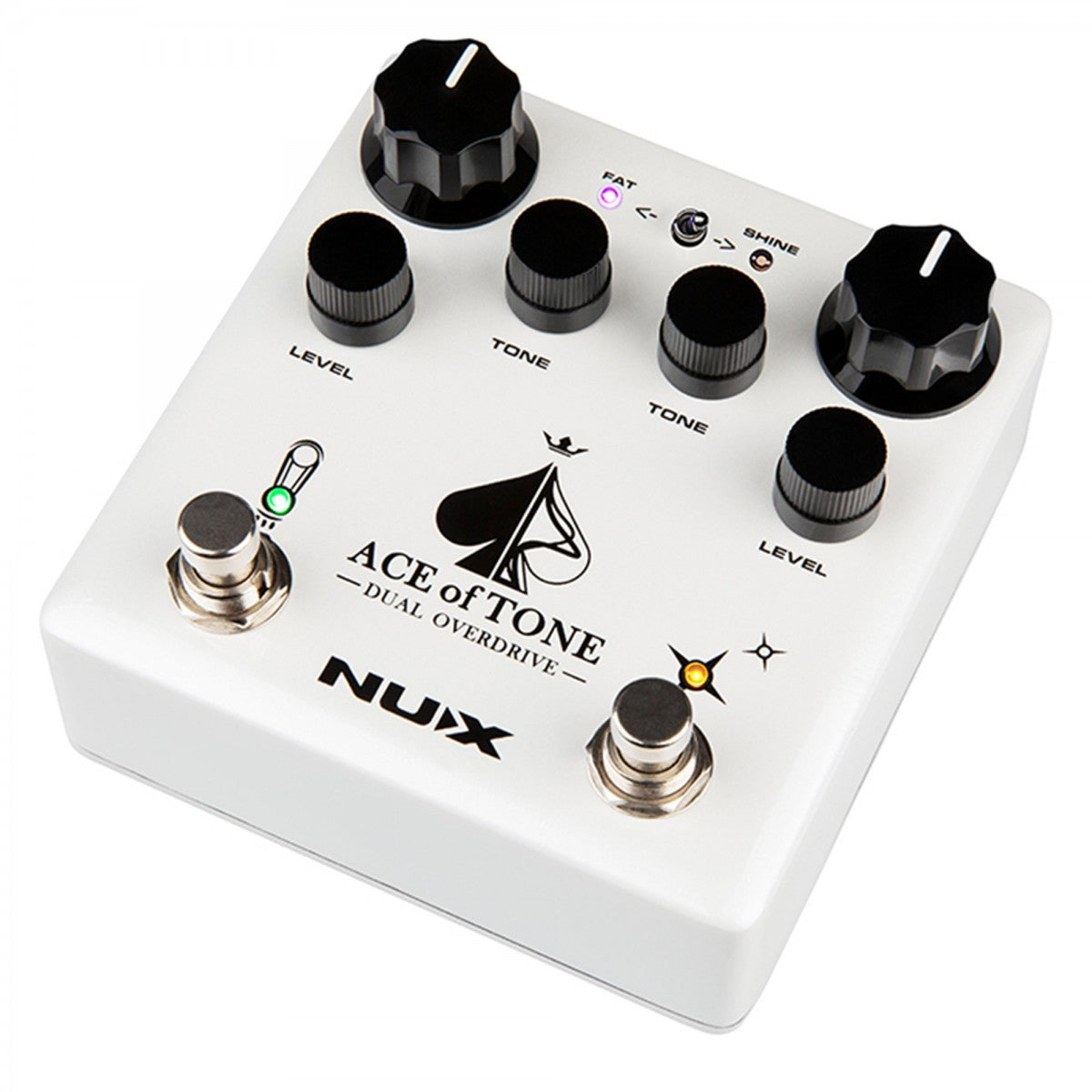

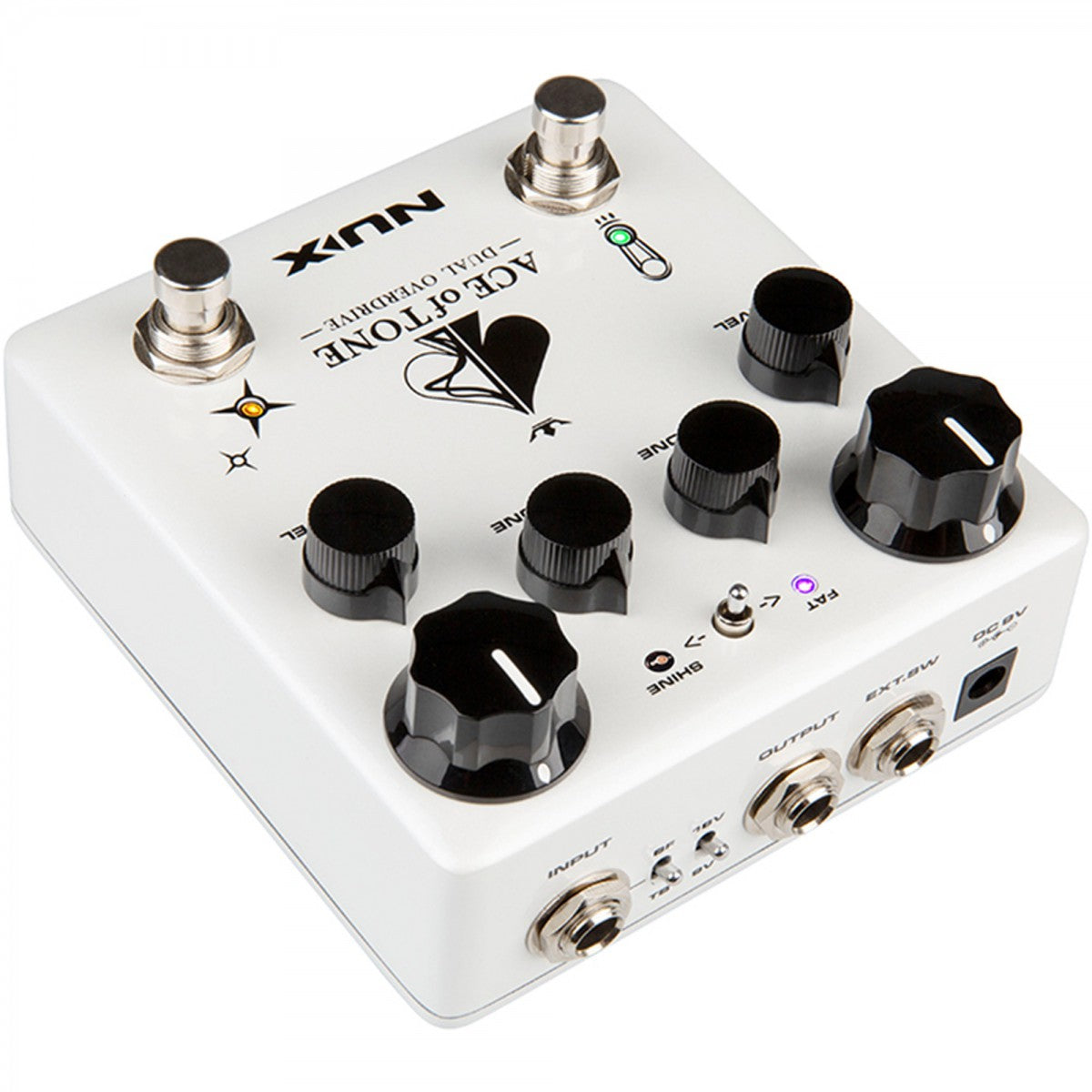

Nux Ace Of Tone Dual Overdrive Pedal
ACE of TONE is a dual overdrive pedal stacked with the Tubeman MKII and Morning Star. Why? Because great guitarists love 2 overdrives to stack their tone.
In the left corner~ Tubeman with FAT mode. The Tubeman offers much more clarity and gain than any classic Tubescreamer, and we've replaced the circuit with a useful secondary function by simply holding down the footswitch~ FAT mode. It gives much more bass response to enhance the low-end, but makes the tone warmer! In the right corner~ Morning Star with SHINE mode. The Morning Star is based on the legendary Bluesbreaker circuit: a very transparent, low-gain driver. Like our Morning Star, it features a simple HOLD FOOTSWITCH to engage the iconic SHINE mode. In SHINE mode, you can get much more treble to make your tone crystal clear.
LEFT
| DRIVER Button | Controls the gain of the Tubeman circuit. |
| TONE Button | Controls the treble frequency of the Tubeman circuit. |
| LEVEL Button | Controls the volume of the Tubeman circuit. |
| Foot pedal | Enable/disable Tubeman circuit. Press and hold for 1 second, you can turn on/off FAT mode. |
| FAT Indicator | The indicator lights up when in FAT mode. |
RIGHT SIDE
| DRIVE Button | Controls the gain of the Morning Star circuit |
| TONE Button | Controls the treble frequency of the Morning Star circuit |
| LEVEL Button | Controls the volume of the Morning Star circuit. |
| Foot pedal | Enable/disable Morning Star circuit. Press and hold for 1 second, you can turn SHINE mode on/off. |
| SHINE Indicator | The indicator lights up when you switch to SHINE mode. |
| Routing Pass Key | You can set the order from Morning Star to Tubeman or from Tubeman to Morning Star. It is very useful to stack the sound. |
Basic Guide

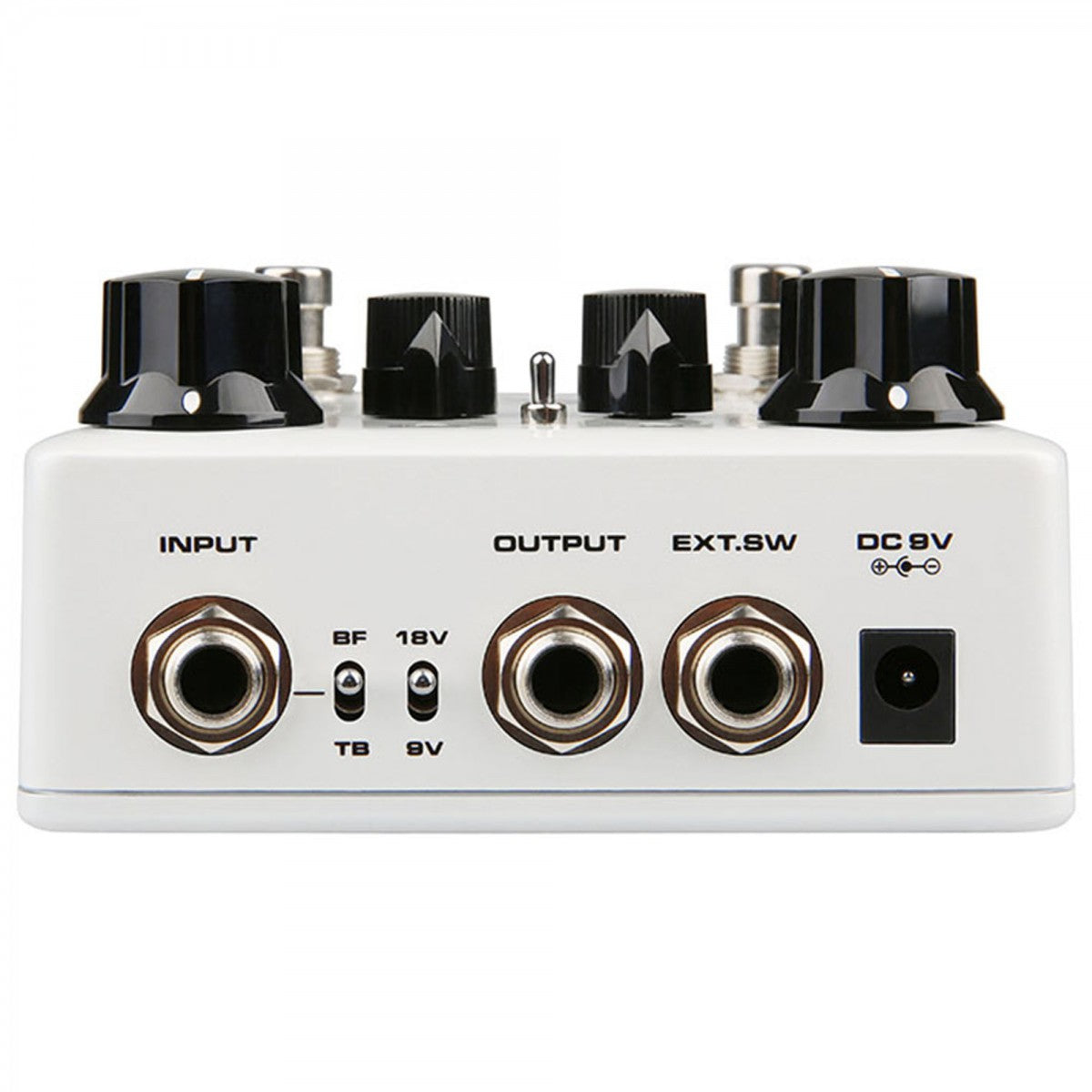

| Entrance | Connect your guitar side to the INPUT jack. |
| Exit | Connect the OUT signal to the amp side. |
| EXTERNAL. SW | You can use an external foot controller (such as NUX NMP-2) to remotely control this pedal. |
| BF/TB Toggle Switch | BF means Buffer Bypass, TB means True Bypass. You can select BF when connecting several pedals in your signal chain to solve the tone loss situation. |
| 18V/9V Toggle Switch | ACE of TONE can internally double the voltage as you switch to 18V, increasing dynamic range and headroom |
| Use Only This Adapter | 9V Negative Type power with 100mA |
Features
| Input Impedance | 2.2MΩ |
| Output Impedance | 1kΩ |
| Strength | 9V DC(Negative terminal,Optional ACD-006A adapter) |
| Current Drawing | Less than 100mA |
| Dimensions | 105(L)X115(W)X58(H)mm |
| Weight | 440g |
