Korg is always developing new ways to create hands-on, fun music-making experiences.
Now you can do it too.

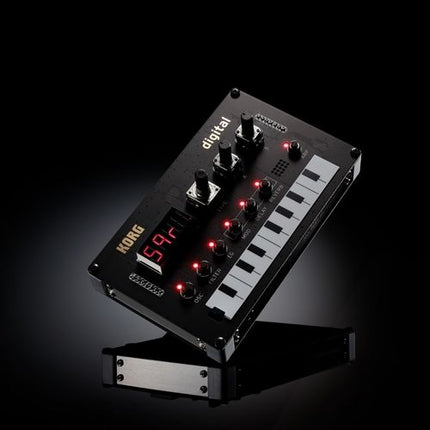

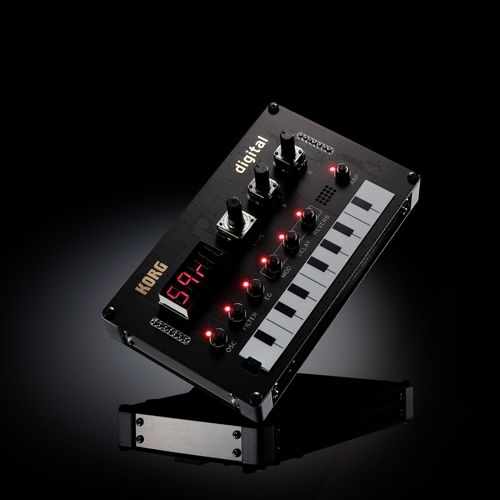

The Nu:Tekt NTS-1 digital KIT is a unique, flexible and easy DIY synthesizer that you can easily assemble yourself without soldering (screwdriver included!).

The first of its kind from KORG's DIY-focused Nu:Tekt brand, the NTS-1 packs a powerful synth and multi-effects engine into a compact form factor that you can carry and plug in anywhere. Its DIY nature also means it's highly customizable. Explore the possibilities!

The NTS-1 is also fully compatible with the logue-SDK*, so it is possible to run any custom oscillator and effect content available for minilogue xd and prologue, or create your own album.

* When using 3rd party plugins on NTS-1, please check with the developer first as the content may differ from minilogue xd or prologue based on polyphony.

Technical Specifications

Keyboard

Ribbon keyboard

Sound Production

1 Digital Oscillator, 1 Multimode filter, 1 EG, 3 LFO

Effects

MOD (CHORUS, ENSEMBLE, PHASER, FLANGER), DELAY, REVERB

Input/Output connections

Headphone output (3.5mm stereo mini phone jack), AUDIO IN input (3.5mm stereo mini-phone jack), SYNC IN input (3.5mm stereo mini-phone jack, 20V maximum input level), SYNC OUT output (3.5mm stereo mini-phone jack, 5V output level), MIDI IN connector (3.5mm stereo mini-phone jack) connector, USB port (micro B type)

Power supply

USB bus power mode, Power consumption: 500 mA or less

Dimensions (W x D x H)

129mm x 78mm x 39mm / 5.08” x 3.07” x 1.54”

Weight

124g / 4.37oz

What is included in the

USB cable, user manual, screwdriver
