A mixer shouldn't just sound good, it should also be easy to use.

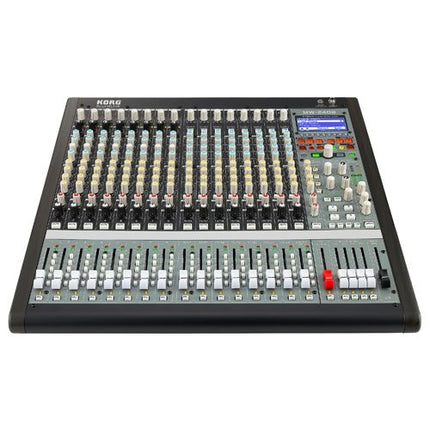

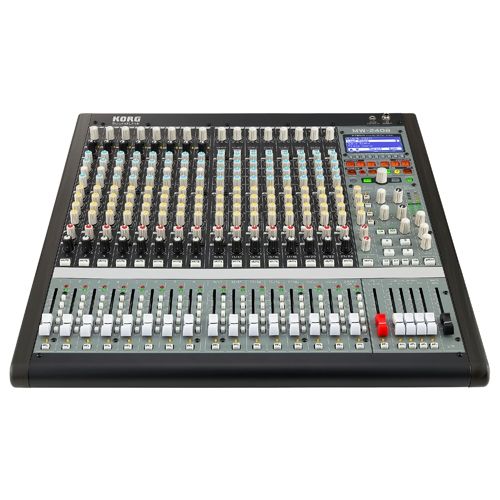

Korg has teamed up with the legendary mixer design team of Greg Mackie and Peter Watts to create hybrid/analog mini-consoles that make creative mixing easy. Both the 24- and 16-channel models embrace the power of high-quality digital, while offering the instant control, stunning sound quality, and more musician-friendly features of analog for those unavoidable live mix situations, all in one unit.
Technical Specifications
Analogue
• Input Type: Balanced female XLR and ¼” TRS • HiVolt Mic preamp: -128dBu EIN, -10 to -60dBU nominal input level; 3KΩ input impedance • Frequency Response to Main Output (at unity gain): +0.5 to -1.5 dBu from 20Hz to 20kHz • THD to Main output (20-20 kHz, unity gain, unwtd): 0.004% • S / N Main Output ratio (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -70 dBu • System Crosstalk (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): Input to Output, -70 dBu; Adjacent Channels, -90 dBu • Gain Control Range (± 1 dB): +10dB to +60dB (Mic), -10 to +40dB (Line) • Main Outputs: Balanced male XLR and ¼” TRS • Maximum Output Level: +26 dBu • Output Impedance: 75 Ω • Headphone Output: 100 mW / ch. @ 32Ω load, 20 Hz-20 kHz (+0.5dB, -1.5dB)
Control
• Savable Settings: Channel Mutes, Effects & effect Mutes, Mute Groups, Break settings, Dynamics, Graphic EQ, Feedback assignment to bus • Configurable Presets: four Mute Groups, 10 Global Scene Memories, 24 FX Memories, 10 Dynamics, 6 GEQs, 16 or 24 Channel Mutes, 3 Feedback bus assignments
Signal Processing
• Mono Channels: HI (12k, shelving), MID (peak, sweepable from 250hz to 5k) and LO (100 Hz, shelving), ±15dB boost/cut; • Stereo Channels: HI (12k shelving), HI MID (2.5k shelving), LO MID (250 Hz shelving) and LO (100Hz shelving) • High Pass Filter: 12dB/octave at 80Hz • Digital Multi-band EQ: 31 bands with nine frequencies selectable at any time, Wide 1-octave range and Narrow ½-octave modes • Digital Compressor: Hard – Attack from 1ms to 40 ms, Threshold from +11dB to 0dB; Soft ¬– Attack from 1 ms to 40 ms, Threshold from +11 to -5dB • Digital Limiter: Attack from 1ms to 40 ms, Threshold from +19 to +3dB • Digital Noise Gate: Hard – Release from 40ms to 1500ms, Threshold from -35 to +7dB; Soft – Release from 40ms to 1500ms, Threshold from -50 to +4dB • Digital Multiband EQ, Compressor, Limiter, and Noise Gate individually assignable to Main L/R, Aux 1, and Aux 2 • Spectrum Analyzer: 24-channel with Peak Hold function
Digital
• Main L/R Bus ADC Dynamic Range: 115dB (A-wtd) • ADC Dynamic Range of Aux and FX Buses: 111dB (A-wtd) • DAC Dynamic Range of all output Buses: 115dB (A-wtd) • USB Stereo Input / Recording Port: USB Class 1 • Internal Processing: 32-bit for internal Processing; • A/D/A Bit Depth: Korg Tru-Bit-Perfect 32-bit • USB Bit Depth: 24-bit • Sampling rate: 48 kHz, 44.1 kHz • Digital Effects: Rev Hall, Rev Hall Warm, Room, Warm Room, Rev Vocal, Rev Vocal Warm, Stage, Stage Warm, Plate Reverb, Plate Reverb Warm, Spring Reverb Warm, Analog Delay, Tape Echo, Variable Delay, Korg SDD3000's Delay, Chorus, Flanger, Exciter, Sub Bass booster, 1 kHZ Test Tone, Slow Sweep, Fast Sweep, White or Pink Noise
Physically
• Power Connection: IEC • Voltage Input Range: 100 to 240 VAC, 50/60 Hz • Power requirement (continuous): 45 W • Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit • Dimensions (WxHxD): 18.9” x 7.36” x 20.89" / 480 mm x 187 mm x 530 mm (17.3” / 440 mm width excluding side panels, with 19” rack rails) • Weight: 20.5lbs / 9.3kg
