First introduced in 1978, Korg's MS-20 monophonic synthesizer is still sought after today for its full, powerful sound and iconic analog filter. Along with the original product, over 300,000 people have enjoyed the MS-20's wonderful sounds with Korg's MS-20 synth plugin or the iMS-20 iPad app.

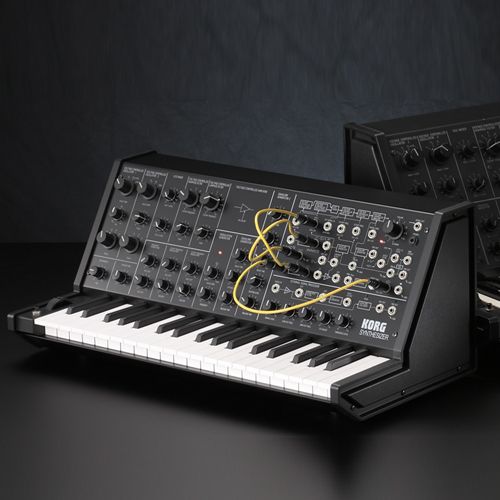

Today, the MS-20 sounds are reborn in hardware form: the MS-20 Mini! The same engineers who built the original MS-20 have perfectly reproduced the MS-20's circuitry, keeping the original appearance and fitting it into an 86% smaller body.

MS-20 Mini will fascinate you with its genuine analog synth sound.

Key Features:

* Exact replica of the original MS-20's engineers' work on analog circuitry.

* 2VCO / 2VCA / 2VCF / 2EG / 1LFO structure

* Self-oscillator, high pass/low pass filters with unique distortion

* External signal processor (ESP)

* Patching system with excellent flexibility

* Body reduced to 86% of original size

* MIDI IN and USB connection

Features:

< Control section >

Keyboard:

• C - C 37-note (3 octaves), mini keyboard specially designed for MS-20 Mini

Oscillator 1 (VCO 1) with voltage control:

• Scale (32', 16', 8', 4') (6 octaves, +cent, -cent)
  Wave form (Triangle, Sawtooth, PW-Square, White Noise) (4 modes)
  Pulse width adjust 1:1 - 1:infinity

Voltage Controlled Oscillator 2 (VCO 2):

• Scale (16', 8', 4', 2') (6 octaves, +cent, -cent)
  Wave form (Sawtooth, Square, Pulse, Ring modulator) (4 modes)
  Pitch (± 1 octave)

VCO Master control: Master tune (±100cent):

• Portamento (max. 10sec)
  Frequency modulation density MG/T.EXT (-5V - +5V)
• • Frequency modulation density EG1/EXT (-5V - 0V)

VCO Mixer:

• VCO Level 1
  VCO 2 Level

High Pass Filter (VCF HPF) with voltage control:

• Cutoff frequency (50Hz - 15,000Hz)
  Peak (flat - self OSC)
  Cutoff frequency modulation intensity MG/T.EXT (-5V - +5V)
  Cutoff frequency modulation intensity EG2/EXT (-5V - +5V)

Low Pass Filter (VCF LPF) with voltage control:

• Cutoff frequency (50Hz - 15,000Hz)
  Peak (flat - self OSC)
  Cutoff frequency modulation intensity MG/T.EXT (-5V - +5V)
• • Cutoff frequency modulation intensity EG2/EXT (-5V - +5V)

Envelope Generator 1:

• Delay time (10 seconds)
  Attack time (10 seconds)
  Release time (10 seconds)

Envelope Generator 2:

• Hold time (20 seconds)
  Attack time (10 seconds)
  Decay time (10 seconds)
  Sustain level (0V - 5V)
  Release time (10 seconds)

Modulation Generator (LFO):

• Wave form (Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse)
  Frequency (0.1Hz - 20Hz)

Manual controls:

• Control wheel (center click)
  Momentary switch -->GND

Power switch and Volume:

• Volume

Indicator:

• LED (KBD trigger, Modulation Generator rate, Power ON)

< External Signal Processor >

Control section:

• Input signal level
  Low cut-off frequency (50Hz - 2,500Hz)
  High cut frequency (100Hz - 5,000Hz)
  CV Adjustment
  Threshold level

Input and Output:

• Signal In
  Amplifier Out
  Band pass filter Out
  CV Out (0 - +8.4V)
  ENV Out (0 - +5V)
  Trig Out (+5V-->GND)

Indicator (LED):

• Peak indicator
  Trigger indicator

< Patch Panel >

Keyboard:

• Keyboard control voltage output (Exponential) (0 - +8V)
  Keyboard trigger output (+5V-->GND)
  VCO-1 + VCO-2 control voltage input (Linear response)(0 - +8V)
  VCO-2 control voltage input (Linear response) (0 - +8V)

VCO:

• VCO-1 + VCO-2 external frequency control input (OCT/V) (-5V - +5V)

VCF:

• External signal input (3Vp-p max.)
  External High pass filter cutoff frequency control input (2OCT/V) (-5V - +5V)
• • External Low pass filter cutoff frequency control input (2OCT/V) (-5V - +5V)

VCO + VCF:

• Total external modulation input (T.EXT)(-5V - +5V)

VCA:

• External pre-gain control input (0 - +5V)

EG:

• EG 1 envelope signal normal output (-5V - 0V)
  EG 1 envelope signal reverse output (+5V - 0V)
  EG 1 + EG 2 trigger input (-->GND)
  EG 1 trigger input (-->GND)
  EG 2 envelope signal reverse output (+5V - 0V)

MG:

• Triangle output (Positive Sawtooth - Triangle - Negative Sawtooth) (5Vp-p)
  Rectangle output (Wide Pulse - Square - Narrow Pulse)(0 - +5V)

Noise Generator:

• Pink noise output (5Vp-p)
  White noise output (5Vp-p)

Sample and Hold:

• Clock trigger input (-->GND)
  Sample signal input (5Vp-p max.)
  S/H output (5Vp-p max.)

VCA Modulation:

• Control voltage input (0 - +5V)
  Signal input(-5V - +5V)
  Signal output (-5V - +5V)

Manual controls:

• Control wheel output (-5V<--0V-->+5V)
  Momentary switch output (-->GND)

Signal out:

• Signal output (mono 1/8" mini phone jack, 2Vp-p output impedance 3.5k ohm)

Head phones:

• Head phones output (Stereo 1/8" mini phone jack, 33 ohm 48mW)

USB:

• Type B, USB-MIDI In/Out

* Only note messages (velocity is not used) can be sent and received.

MIDI:

• MIDI Input

* Only note messages (velocity is not used) can be sent and received.

Power consumption:

• 9W

Power supply:

• DC9V

Dimensions (W x D x H):

• 493×257×208mm

Weight:

• 4.8 kg.

Accessories:

• AC adapter (9V/1.7A), Patch cord x 10

* Specifications and appearance are subject to change without notice.
