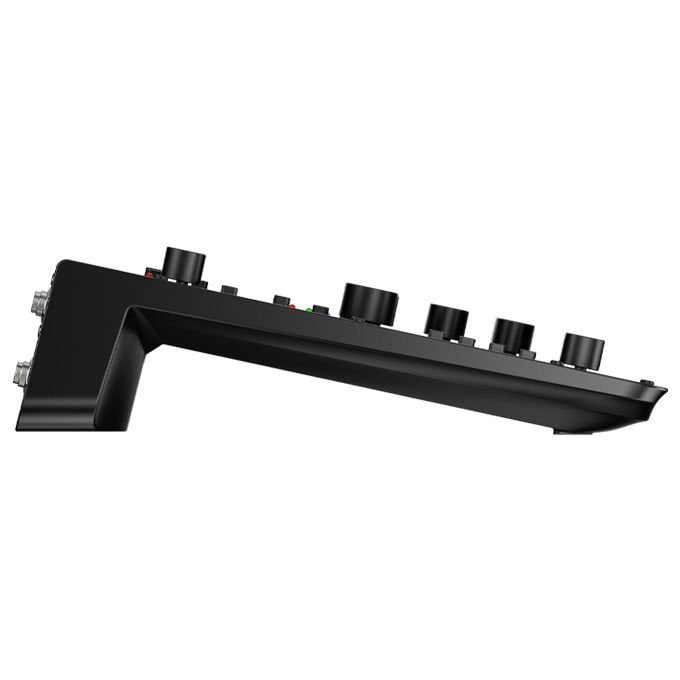

MIXX8.6 | 8-Channel Digital Mixer
7,926.69TLKDV dahil
2 ürünler Stokta Show extra info for delivery time
Açıklama
8-Channel Effect Digital Podcast Live Broadcast Audio Mixer (PC | MAC Compatible)
MIXX8.6 digital mixer is designed with 8 inputs and 6 outputs. Built-in digital audio processing functions such as effect, EQ, compressor, etc. And equipped with a USB interface, which can transmit audio by mobile phones and computers. It has 16 types of digital reverb effects, which can be easily adjusted for various occasions by encoder. MIXX8.6 has simple and elegant appearance with reasonable layout of function buttons, suitable for various small-scale performances, conferences, speeches, KTVs, live broadcasts and other occasions.
Multi-Function Panel
The mixer panel can turn on/off various functions including EQ, mute, compressor, reverb, 48V phantom power, etc.
48V Phantom Power Supply
Channels 1-4 provide +48V phantom power controlled by panel pushbutton switches.
Professional Reverb Effect
Professional reverb function that can simulate various sound effects.

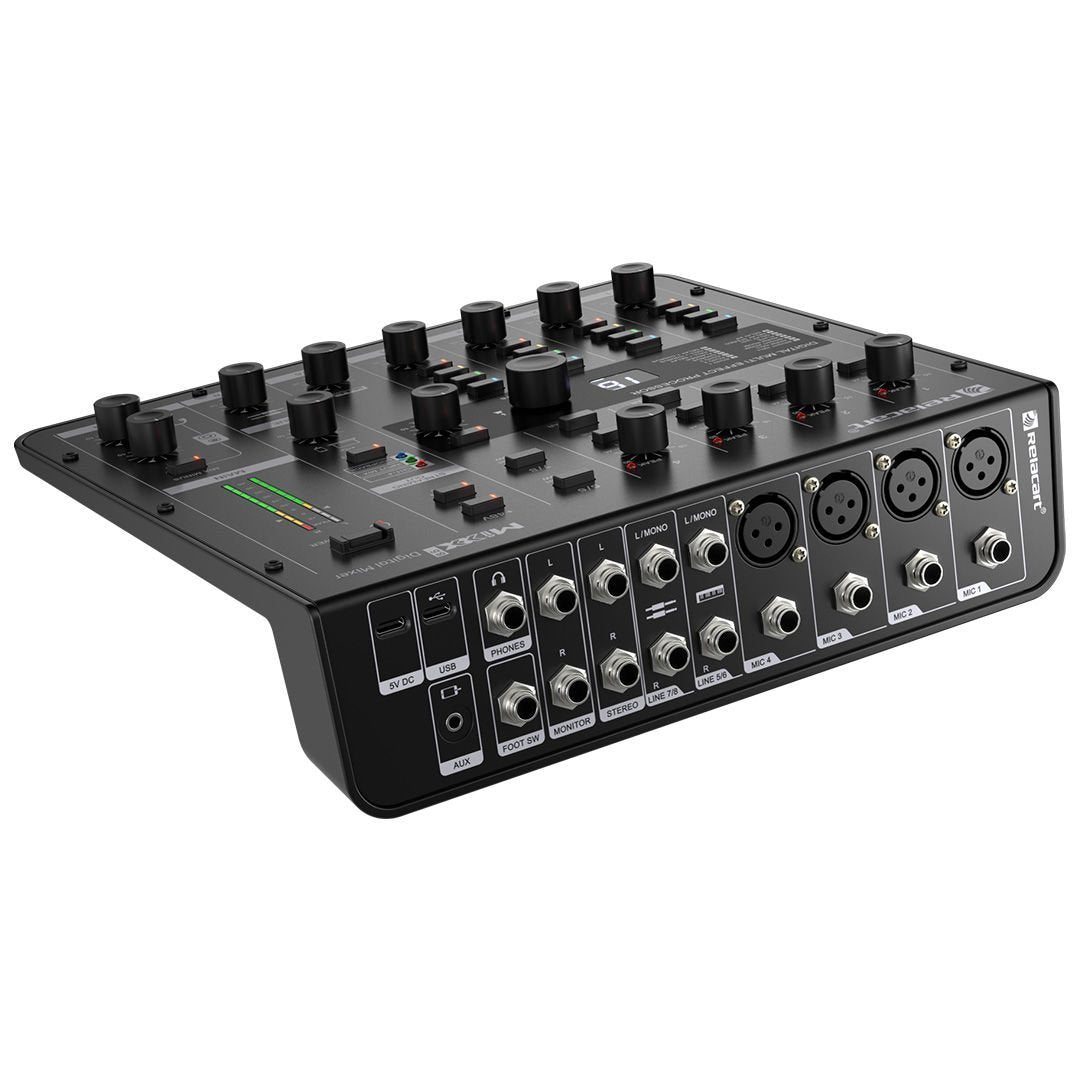

Eight Channel Input
Input channels 1-4 can select MIC or LINE input source. Input channels 3 and 4 can be set as instrument input sources. Channel 5-8 is stereo input, can switch H/L impedance.
Multiple Sound Modes
The USB output can be set to multiple audio modes to suit a variety of applications.
Real Time Monitor
MIX MINUS excludes the audio input of channels 1-4 from local playback and monitoring.
Technical Specifications
Technical Specifications
• Sample Rate: 24bit, 48kHz
• Frequency Response: 20 Hz - 20 kHz +0/-1 dB
• THD : <%0.1
• Signal to Noise Ratio: 90dB Single channel maximum fader（A weighted）
• Dynamic Range: 100dB Single channel maximum fader（A weighted）
• Common Mode Rejection Ratio: >70dB @1kHz
• MIC Input Impedance: 3.3k Ω (XLR Balance); 1.8kΩ（1/4″）
• LINE Input Impedance: 10K Ω (1/4″)
• Output Impedance: 150 Ω
• Gain: 0 to 60dB (XLR)
• FOOT SW : REVERB ON/OFF
• Phantom Power Supply: +48V
• USB Audio: 2IN/2OUT compatible with USB audio class 2.0
• Power Supply: DC 5V (1A)
• Power Consumption: up to 5W
• Dimensions (mm): 260(L)*230(H)*89(D)
