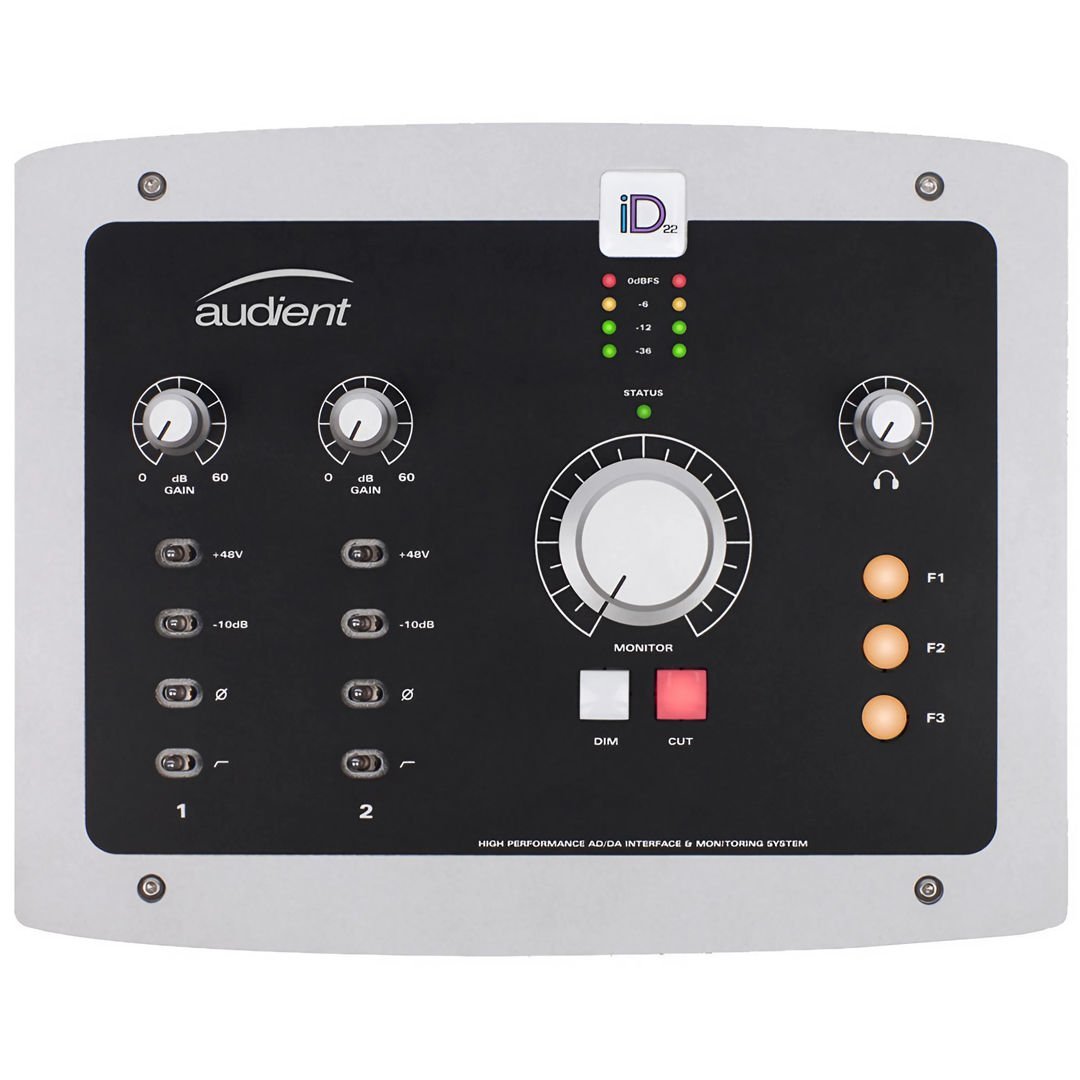

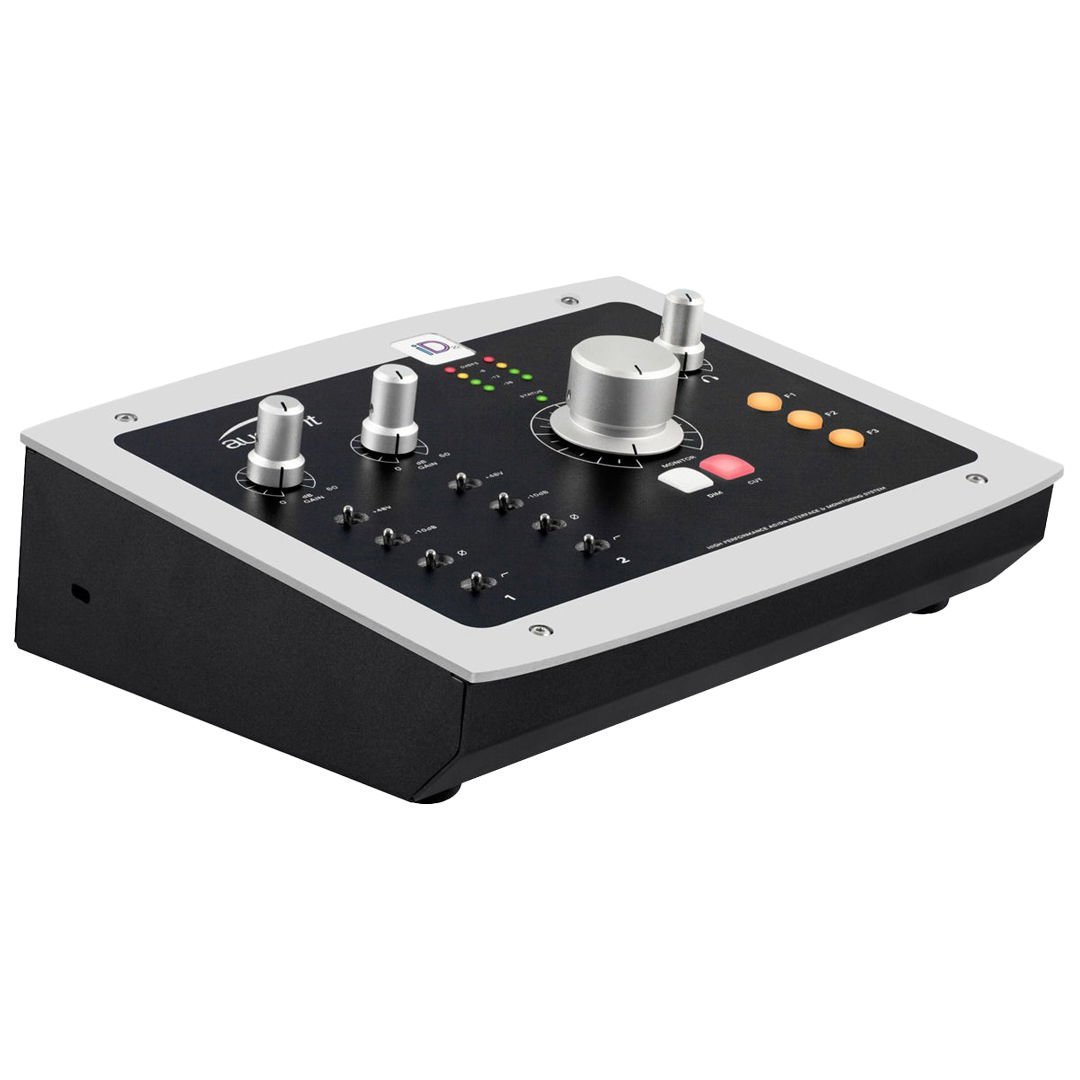

Audient iD22
High Quality USB Sound Card: 2-in/4-out 24-bit/96kHz Burr Brown AD/DA Converter & Monitor Controller (PC and MAC compatible)

Welcome to Arc, Audient’s creative network. Find comprehensive software and advice from the industry’s most innovative leaders by clicking the link . If you have any current Audient products, all you have to do is register your product and enjoy free benefits.
Help articles about Audient ID22...




HIGH PERFORMANCE AD/DA INTERFACE & MONITORING SYSTEM
iD22 will transform your DAW into a world-class recording system by connecting directly to your microphone, computer and monitor.
iD22 offers two classic Audient mic preamps and designed AD/DA converters to deliver smooth, detailed, and impressive depth for tracking and mixing.
iD22 is expandable with ADAT I/O - perfect for partnering with an ASP008 for 10-ch recording [10 total, 12-out + headphone]. Our console-style monitor controller is functional and USB2.0 connectivity completes your ergonomic desktop package.



Contents:
• 2-input, 6-output high performance 24-bit/96kHz AD/DA converters

• 2 super class-A mic preamps & 1 discrete JFET instrument input
• Fully balanced insertion points for external device integration
• High current headphone amplifier fed by an independent DAC
• Main and alternate stereo outputs
• Monitoring function with user-defined hardware control
• USB 2.0 class compliant connectivity with integrated DSP mixer



Sound Quality
PURE CONVERTER TECHNOLOGY
The iD22 has 2 analog inputs and 6 analog outputs, and these I/Os are driven by high quality 24-bit96 kHz converters. After months of testing, we have been able to squeeze every last drop of converter performance out of the iD22 in terms of component selection and circuit topologies, achieving the best results. The end result is an extremely high quality stereo image, fast low frequencies, and smooth, detailed and smooth high frequencies.

FIRST CLASS MICROPHONE PRE'S
iD22 provides 2 classic Audient mic preamps – the same ones used on over 50,000 channels worldwide. The hybrid design delivers clean, characterful front ends that deliver great sound every time.
Each input channel has its own pad for level control, phantom power for condenser microphones, a high pass filter for unwanted frequencies, and a polarity switch for phase-sequencing your inputs. Channel 2 has a JFET DI input for guitars, synths, and other instruments.

Microphone Preamps
MI. GAIN: -10 to +60dB (-10dB Pad)
LINE GAIN: -20 to +40dB (-10dB Pad)
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC. EIN: <-125dBu
CMRR: >80dB @ 1kHz
MAXIMUM ENTRY LEVEL: +22dBu (+32dBu with Pad)
INPUT IMPEDANCE (Mic): >3kΩ Balanced
INPUT IMPEDANCE (Line): >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB from 10Hz to 100kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.0015% (-96dBu)
SNR: 96dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DI (Channel 2):
DI GAIN: -16 to +54dB (-10dB Pad)
MAXIMUM ENTRY LEVEL: +16dBu (typical), +22dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.03% (-70dBu)
SNR: 93dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
INSERT SEND (Mic. Pre Output):
MAXIMUM OUTPUT LEVEL: +22dBu
OUTPUT IMPEDANCE: <100Ω Balanced
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Power supply: 12VDC center positive DC Adapter - >1.5Amps
ADC LINE INPUTS (Input returns):
MAXIMUM ENTRY LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUT IMPEDANCE: >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -100dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.002% (-94dB)
THD+N @ -6dBFS (1kHz): <0.0015% (-97dB)
DYNAMIC RANGE: 117dB unweighted
120dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DAC OUTPUTS (1-4):
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB from 5Hz to Fs/2
CROSSTALK: -110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-101dB)
DYNAMIC RANGE: 110dB unweighted
114dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
HEADPHONE OUTPUT (5&6):
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <50Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB from 5Hz to Fs/2
CROSSTALK: -110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-101dB)
DYNAMIC RANGE: 110dB unweighted
114dB A-weighted
Maximum level into 30ohm: +8dBu, 0.0032%
THD+N, 2.75Vpk
Power: 250mW or Pavg 125mW
Maximum level into 60ohm: +11dBu, 0.0022%
THD+N, 4.3Vpk
Power: 300mW or Pavg 150mW
Maximum level to 600ohm: +17.2dBu, 0.0013%
THD+N, 7.94Vpk
Power: 105mW or Pavg 52.5mW
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DIGITAL i/o:
ADAT 8 CHANNEL 44.1 - 48kHz
ADAT 4 CHANNEL 88.2 - 96kHZ
STEREO S/PDIF 44.1 - 96kHz
USB2.0
NUMBER OF INPUT CHANNELS 10
(2 Analog, 8 Digital)
NUMBER OF INPUT CHANNELS 14
(6 Analog, 8 Digital)
iD DSP Mixer Delay:
44.1 kHz 1.43ms
48.0 kHz 1.31ms
88.2 kHz 0.719ms
96.0 kHz 0.656ms
DAW Playback delay @ 32 Sample Buffer
44.1 kHz 3.166ms
96.0 kHz 2.12ms
DAW Software Pre-Listening Delay @ 32 Sample Buffer
44.1 kHz 6.33ms
96.0 kHz 4.24ms


Free software
Compatible with all major audio software and plug-ins, ID22 comes with a collection of professional software that gives you everything you need to start recording.
