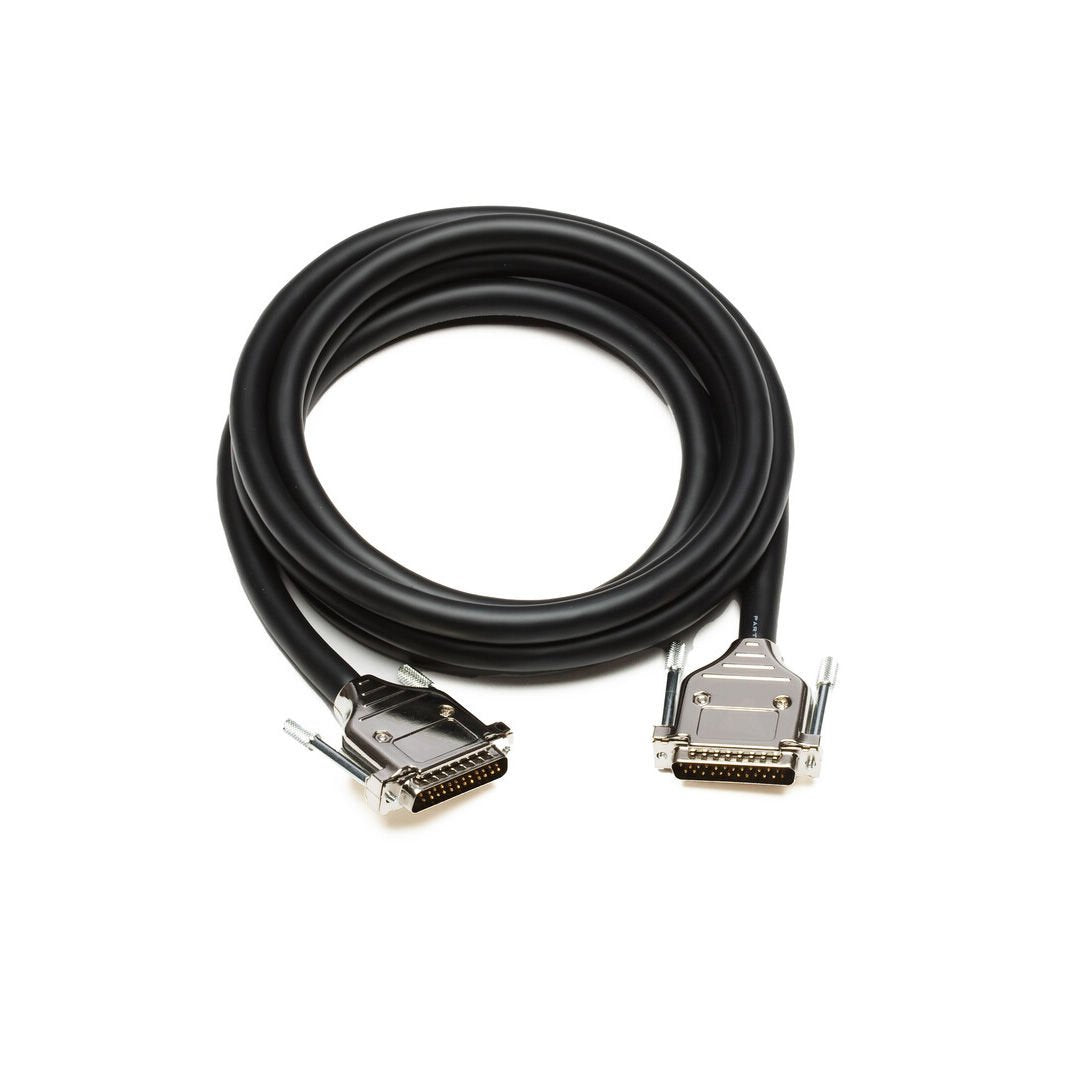

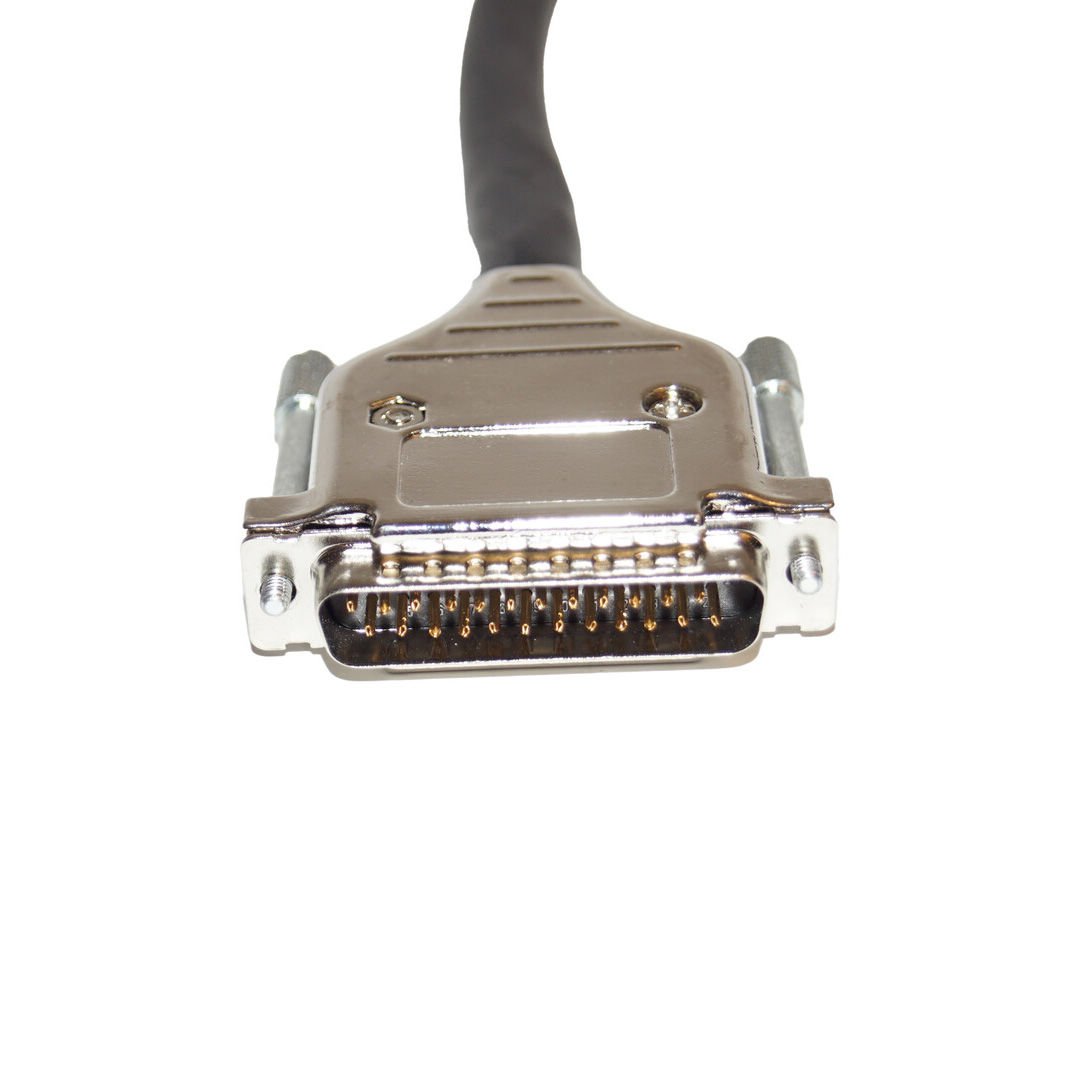

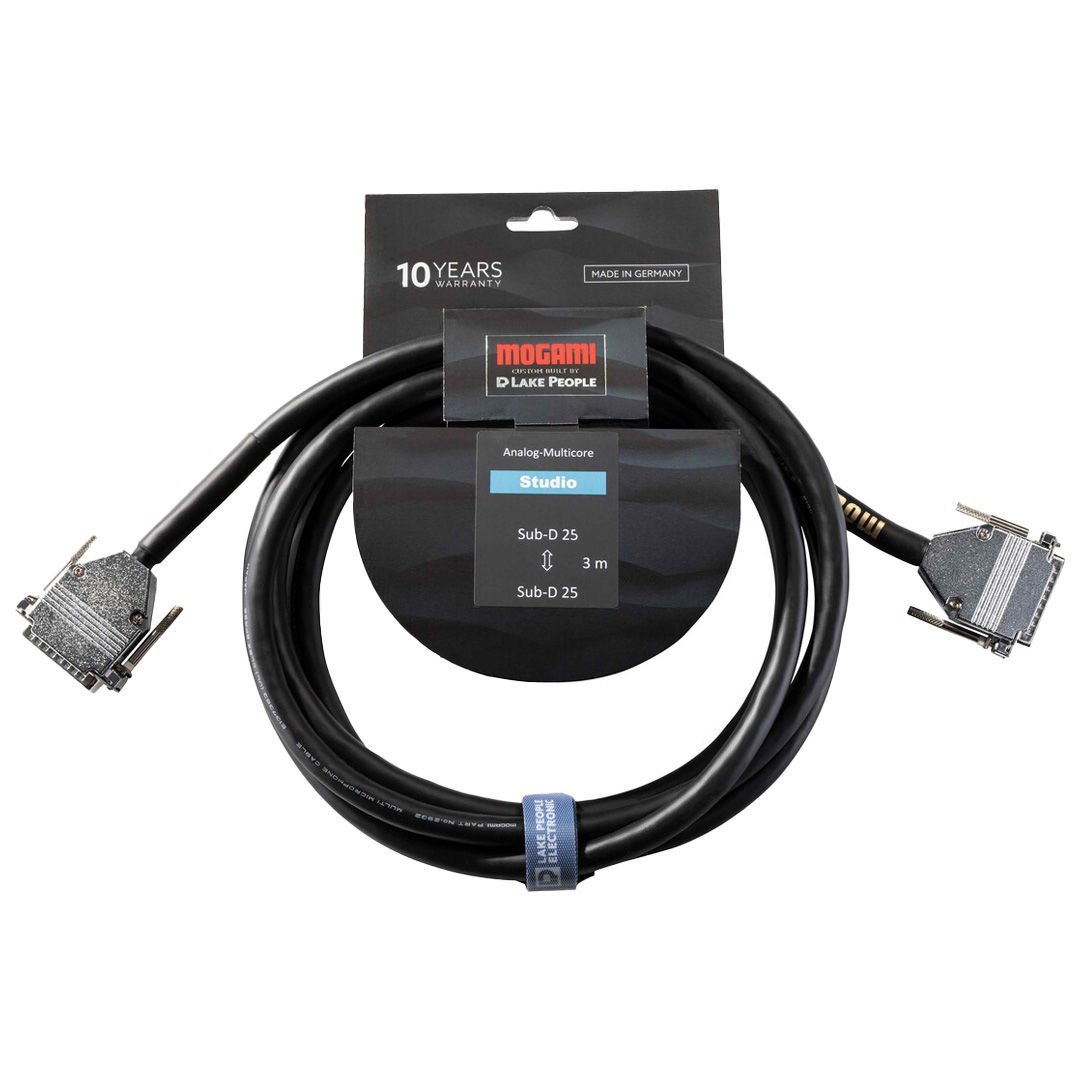

D-Sub 25 pin <> D-Sub 25 pin, chrome plated housing, gold plated contacts. Mogami 2932 Neglex Multipair Analog Cable, black

"Mogami by Lake People" cables, passionately produced in Japan and assembled with the highest precision in Germany

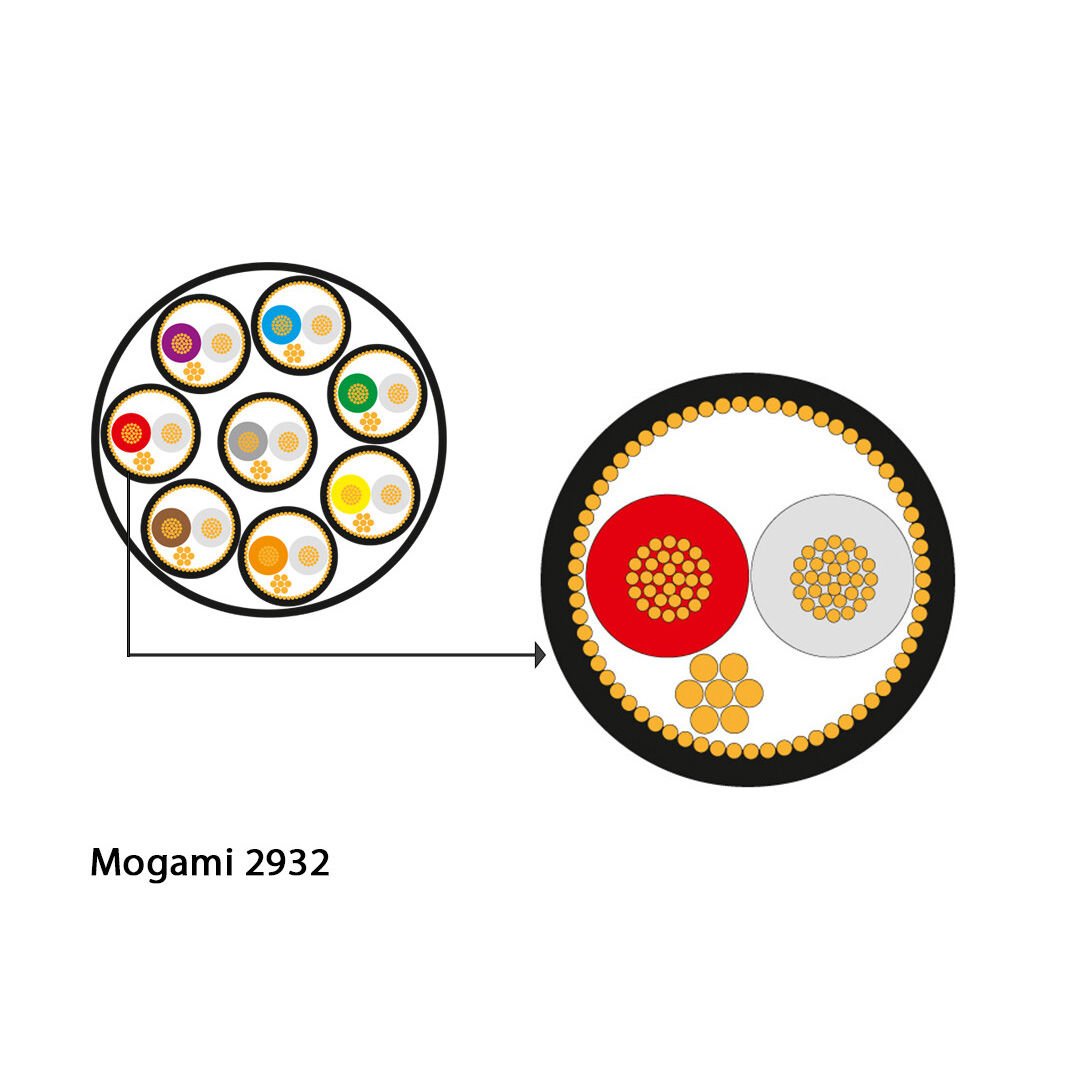

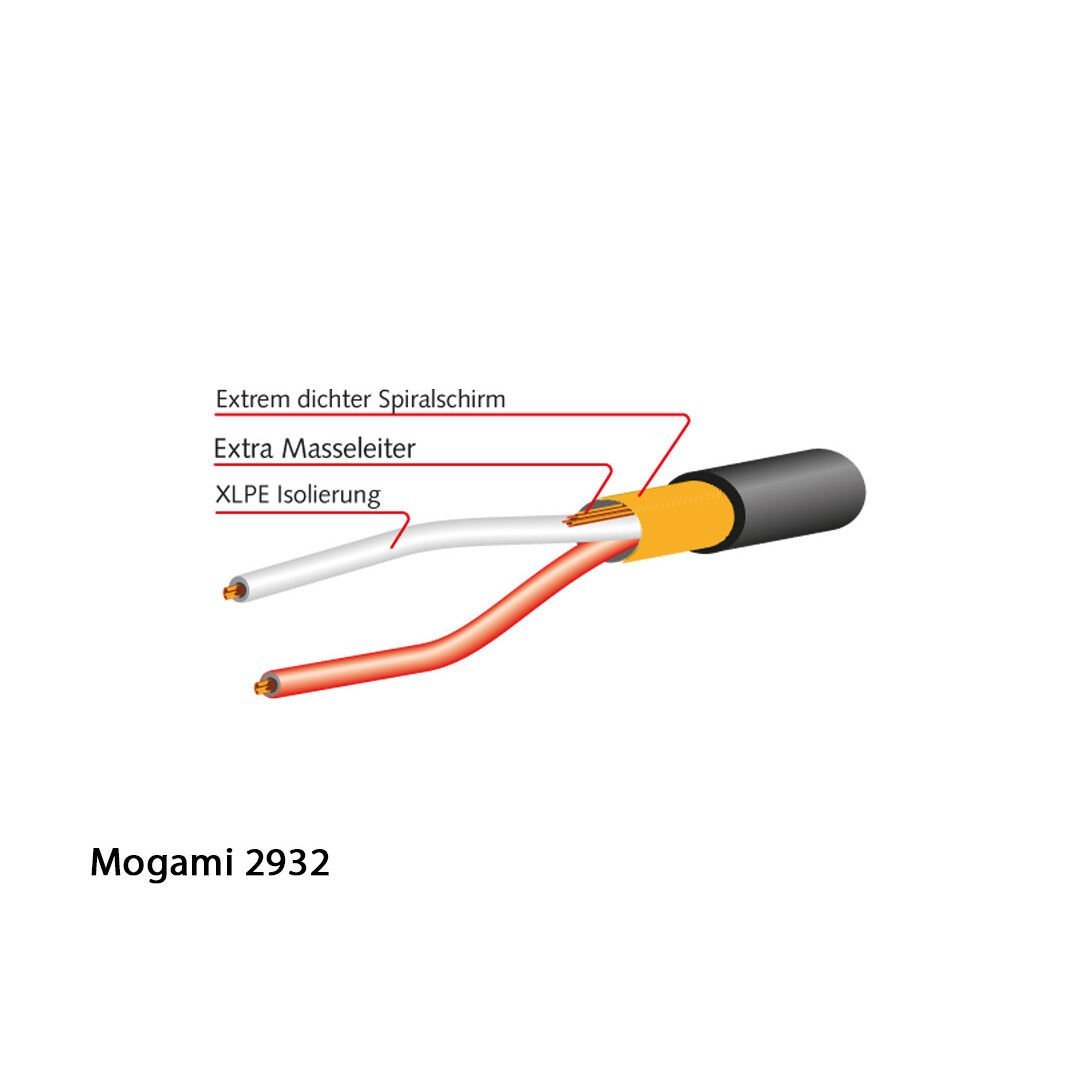

Mogami's analog 8-core Multicore 2932 is known for its unparalleled transparency, low noise and remarkable flexibility. Selected materials such as XLPE Cross-Linked Polyethylene and an extra grounding conductor also provide excellent electrical properties.
Many audio engineers and studios around the world trust the unique sound and resulting clarity of Mogami cables.

Technical Specifications
• NO. conductor: 8x2
• DC resistance: Inner Conductor: 0.130 Ohm/m / Screen: 0.030 Ohm/m
• Inner conductor: Details: 30 x 0.08 A / Size: 0.15 mm² (AWG26)
• Insulation: Ov. Diameter: 1 mm / Material: XLPE / Color: Resistance Color Code
• Capacitance (1 kHz, 20°C): Inner Conductor-Screen: 130 pF/m / Conductor-Conductor: 12 pF/m
• Cable diameter: 11.5 mm
• Cable number: 2549
• Length: 3 Meters
• Jacket material: Flexible PVC
• Drain wire: Details: 7 x 0.18 TA / Size: 0.18 mm² (AWG25)
• Shielding: Spiral Shield (60/0.1 A)
• Connector: D-Sub25
• Applicable temperature: -20°C - +70°C
• Weight: 0.90 kilos
